Product details

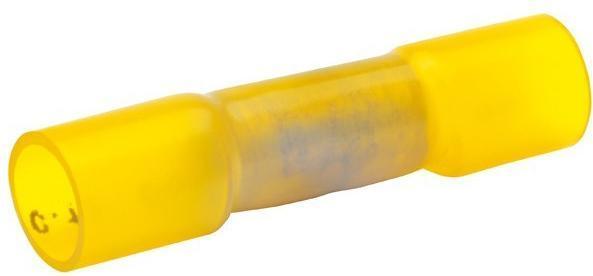

Klauke Sleeve Connector 700 WS
Manufacturer: Klauke
Description: Sleeve connector 4-6 mm² insulated
Type: 700 WS
Nominal cross-section: 4-6 mm²
AWG range: 10-11
Design: Standard design
Sleeve shape: Long
Suitable for solid conductors: No
Suitable for fine stranded conductors: Yes
Suitable for high-temperature applications (up to 650 °C): No
Suitable for enameled wires: No
Suitable for round conductors: No
Suitable for flat conductors: No
Material: Other
Surface protection: Tin-plated
Insulation: Polyamide (PA)
Color of insulation: Yellow
Voltage range: Up to 230/380 V
Connection type: Sleeve connector
Number of branches: 2
For voltage-resistant connections: No
Oil barrier/middle bridge: No

Klauke Sleeve Connector 700 WS: Additional Details
For fine and superfine wires. With middle pressure for precise cable laying. With waterproof shrink insulation. Insulated, halogen-free. Color coding based on cross-section. Special crimping tool required. Temperature resistant up to 105 °C. Tin-plated. Material: Cu-ETP. Insulating sleeve: PE.

Key specifications

Colour
Yellow
Suitable for cable cross-section
4 mm²
Items per sales unit
100x

General information

Item number
20020064
Manufacturer
Klauke
Category
Cable joints
Manufacturer no.
700WS
Release date
16.3.2022

Colour

Exact colour description
Yellow
Colour
Yellow

Material

Material
Other material
Material group
Metal

Cable connection Properties

Suitable for cable cross-section
4 mm²

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
0.66 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
100x

Product dimensions

Length
190 mm
Width
130 mm
Height
30 mm
