Klauke Screw connector

Ratings
BrandMore from Klauke
Currently out of stock
Free shipping starting at 50.–

Product details

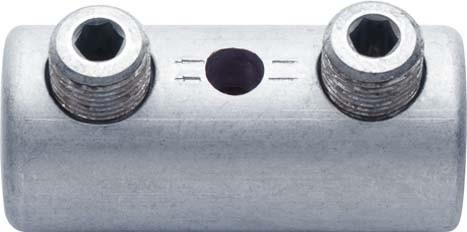

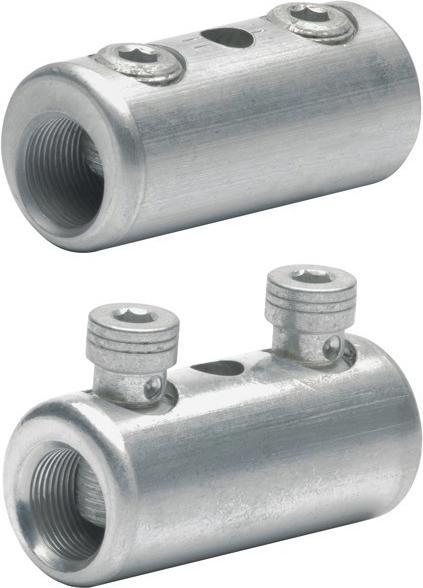

Klauke screw connector SV308
Manufacturer: Klauke
Designation: Screw connector
Type: SV308
Nominal cross section copper, RM: 35-150 mm²
Nominal cross section copper, RE: 35-150 mm²
Nominal cross section aluminium, RM: 35-150 mm²
Nominal cross section aluminium, RE: 35-150 mm²
Nominal cross section aluminium, SE: 35-150 mm²
Conductor material: Aluminium/Copper
Surface protection: Bright
Oil stop/centre bar: No
With insulation: No
Voltage range: Up to 15 kV
Number of screws: 2
With solder hole: No
Protection class (IP): Other

Klauke screw connector SV308: further details
Ideal for connecting equal and unequal conductor cross-sections. For connecting different conductor types and materials according to VDE 0295 class 1 and 2 and Al conductors according to DIN 48201 part 5. With inspection hole for cable insertion control (different materials must not touch each other). Special groove profile inside to destroy the oxidation layer when screwing. Version with 2 screws. Clamping body: High-strength aluminium alloy.

Key specifications

Suitable for cable cross-section
150 mm²
Items per sales unit
2x

General information

Item number
36797588
Manufacturer
Klauke
Category
Cable joints
Manufacturer no.
SV308
Release date
28.6.2023

Material

Material
Aluminium/copper
Material group
Metal

Cable connection Properties

Suitable for cable cross-section
150 mm²

Origin

Country of origin
Germany

Scope of delivery

Items per sales unit
2x
