Klauke Pressed cable lug 400 mm rm/sm, M16, Al 214R16

Ratings
BrandMore from Klauke
Delivered between Sat, 18.10. and Thu, 6.11.
Free shipping starting at 50.–

Product details

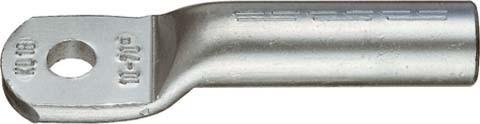

Klauke Al compression cable lug 214R/16
Manufacturer: Klauke
Designation: Al compression cable lug 300RM/SM
Type: 214R/16
Cross-section shape: round/sector
Narrow flange design: no
Nominal cross-section aluminium, RM/SM: 400 mm²
Connection thread dimension (metric): 16
Material: aluminium
Suitable for Al/St ropes: no
Longitudinal sealing: no
Code number: 38
Number of fixing holes: 1
Conforms to DIN: yes
Sleeve shape: long

Klauke Al compression cable lug 214R/16: further details
Pipe dimension according to DIN 46329. For strain-relieved connections of Al conductors according to DIN EN 60228 and Al ropes according to DIN EN 50182. With code number for clear tool assignment. Filled with contact grease for optimum pressing properties. Also for round-pressed sm/se sector conductors. With crimping marks for correct crimping. Precise end machining for easy cable insertion. Blank, material E-Al.

Key specifications

Item number
33443324

General information

Manufacturer
Klauke
Category
Cable joints
Manufacturer no.
214R16
Release date
17.5.2023

Colour

Exact colour description
Silver
Colour
Silver

Material

Material
Aluminium
Material group
Metal

Cable connection Properties

Cable connection type
Cable lugs
Suitable for cable cross-section
400 mm²
Plug type
Flat

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x
