Klauke Press connector

Ratings
BrandMore from Klauke
Currently out of stock
Free shipping starting at 50.–

Product details

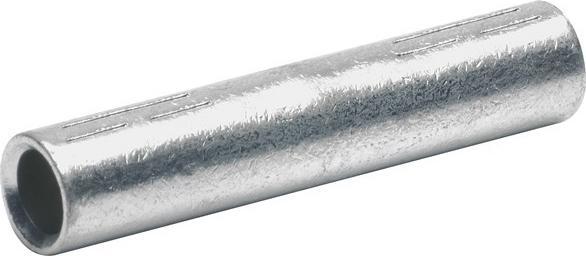

Klauke crimp connector 531R
Manufacturer: Klauke
Designation: Crimp connector 185 mm²
Type: 531R
Nominal cross section: 185 mm²
Design: DIN design
Sleeve shape: Short
Suitable for solid conductors: Yes
Suitable for stranded conductors: Yes
Suitable for fine stranded conductors: Yes
Suitable for high temperatures (up to 650 °C): No
Suitable for enamelled wire: No
Suitable for round conductors: Yes
Suitable for flat conductors: No
Material: Copper
Surface protection: Tin-plated
Insulation: Without
Voltage range: Up to 15 kV
Connection type: Butt connector
Number of branches: 2
For tension-resistant connections: No
Oil stop/centre bar: Yes

Klauke crimp connector 531R: further details
Longitudinally tight design with oil stop. Pipe dimension according to DIN 46267 part 1. With code number for clear tool allocation. For strain-relieved connections. With crimping marks for correct crimping. Optimum material and crimping properties due to annealed material. Precise end machining for easy cable insertion. Galvanically tin-plated to protect against corrosion. Material Cu according to EN 13600.

Key specifications

Colour
Silver
Suitable for cable cross-section
185 mm²

General information

Item number
36760595
Manufacturer
Klauke
Category
Cable joints
Manufacturer no.
531R
Release date
28.6.2023

Colour

Exact colour description
Silver
Colour
Silver

Material

Material
Copper
Material group
Metal

Cable connection Properties

Suitable for cable cross-section
185 mm²

Origin

Country of origin
Slovakia
