Klauke KSK1504

Ratings
BrandMore from Klauke
Currently out of stock
Free shipping starting at 50.–

Product details

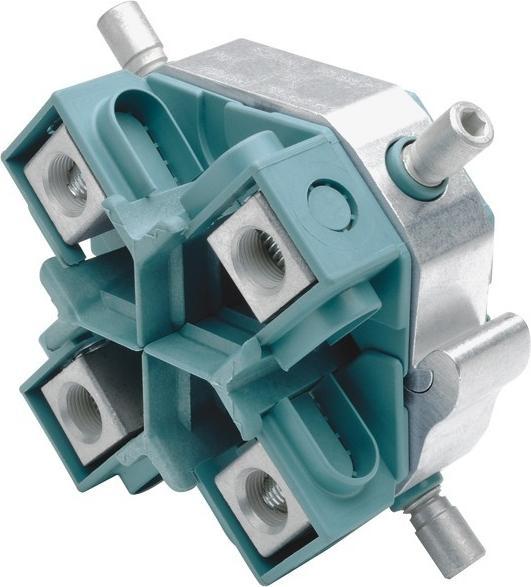

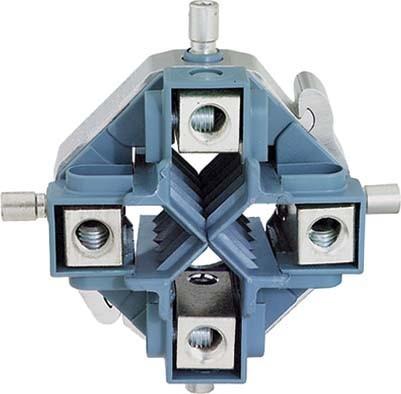

Klauke Screw Terminal Ring KSK1504
Manufacturer: Klauke
Description: Screw terminal ring for four-core cables
Type: KSK1504
Number of conductors per cable: 4
Rated cross-section of main conductor, SE: 70 to 150 mm²
Rated cross-section of main conductor, SM: 70 to 150 mm²
Rated cross-section of branch conductor, SE: 6 to 50 mm²
Rated cross-section of branch conductor, RE: 6 to 50 mm²
Rated cross-section of branch conductor, SM: 6 to 35 mm²
Rated cross-section of branch conductor, RM: 6 to 35 mm²
Installation under voltage possible: Yes
Length: 107 mm
Width: 46 mm
Diameter: 110 mm

The Klauke Screw Terminal Ring KSK1504 is suitable for main and branch conductors made of aluminum and copper. It is not necessary to disconnect the main conductor. It is used, for example, in the field of power supply. It can be installed under voltage according to VDE with suitable fully insulated installation tools. It features shear pins for the main conductor that are not removable.

Key specifications

Items per sales unit
1x

General information

Item number
33773188
Manufacturer
Klauke
Category
Cable joints
Manufacturer no.
KSK1504
Release date
17.5.2023

Material

Material group
Metal

Origin

Country of origin
Germany

Scope of delivery

Items per sales unit
1x

Product dimensions

Length
107 mm
Width
46 mm
