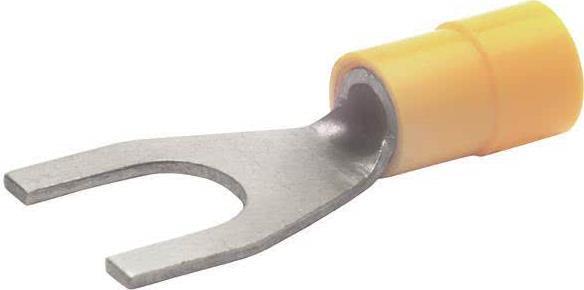

Klauke Crimp Cable Lug 650C/5
Manufacturer: Klauke
Description: Insulated Crimp Cable Lug 4-6 mm²
Type: 650C/5
Thread connection size (metric): 5
Flange shape: Fork shape
Complies with DIN: Yes
Insulation: Polyamide (PA)
Insulation color: Yellow
Nominal cross-section: 4...6 mm²
Strap material: No
Sleeve shape: Short
Suitable for solid conductors: No
Suitable for stranded conductors: No
Suitable for fine-stranded conductors: Yes
Suitable for high temperatures (up to 650 °C): No
Suitable for enameled wires: No
Suitable for round conductors: Yes
Suitable for flat conductors: No
For voltage-resistant connections: No
Material: Copper
Surface protection: Tin-plated
Maximum current (Imax): 25.5 A
Pin dimension (imperial): 5

According to DIN 46237 with flanged insulating sleeves. For fine and superfine stranded conductors. High-quality soldering process in the crimp area. Fork design for easy mounting through direct screwing. Insulated, halogen-free. Temperature resistance up to 105 °C. Easy-insertion insulation for simple cable entry. Cross-section-dependent color coding. Tin-plated. Material Cu-ETP. Insulating sleeve: PA.

Key specifications

Colour
Yellow
Cable connection type
Cable lugs
Suitable for cable cross-section
4 mm²
Items per sales unit
100x

General information

Item number
20020030
Manufacturer
Klauke
Category
Cable joints
Manufacturer no.
650C5
Release date
16.3.2022

Colour

Exact colour description
Yellow
Colour
Yellow

Material

Material
Copper
Material group
Metal

Cable connection Properties

Cable connection type
Cable lugs
Suitable for cable cross-section
4 mm²

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
0.66 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
100x

Product dimensions

Length
120 mm
Width
90 mm
Height
30 mm
