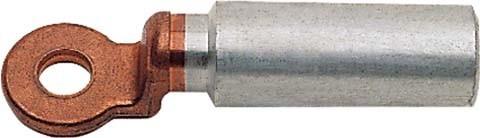

Klauke Al-Cu press cable lug

Ratings
BrandMore from Klauke
Currently out of stock
Free shipping starting at 50.–

Product details

Klauke Al-Cu Compression Cable Lug 369R/16

Manufacturer: Klauke
Designation: Al-Cu Compression Cable Lug 120RM/SM-150SE
Type: 369R/16
Cross-section shape: Round/Sector shape
Narrow flange shape: No
Nominal cross-section Aluminum, RM/SM: 120 mm²
Nominal cross-section Aluminum, SE: 150 mm²
Connection thread size (metric): 16
Material: Aluminum
Suitable for Al/St cables: Yes
Longitudinal sealing: Yes
Code number: 22
Number of mounting holes: 1
Complies with DIN: No
Sleeve shape: Long

Further details: Tube dimensions according to DIN 46329. For strain-relieved connections of aluminum conductors according to DIN EN 60228 and aluminum cables according to DIN EN 50182. For bolting aluminum connections to copper busbars in damp environments. With code number for clear tool assignment. Filled with contact grease for optimal crimping properties. Longitudinally sealed version with oil stopper and solid copper screw connection. For round-pressed sector conductors. With crimp markings for correct crimping. Precise finishing for easy cable access. Uncoated, material E-Al. Cu according to EN 13600.

Key specifications

Colour
Silver
Cable connection type
Cable lugs
Suitable for cable cross-section
120 mm²

General information

Item number
36797577
Manufacturer
Klauke
Category
Cable joints
Manufacturer no.
369R16
Release date
28.6.2023

Colour

Exact colour description
Silver
Colour
Silver

Material

Material
Aluminium
Material group
Metal

Cable connection Properties

Cable connection type
Cable lugs
Suitable for cable cross-section
120 mm²

Origin

Country of origin
China
