kaiserkraft Ball caster with recessed sheet steel housing

Ratings
BrandMore from kaiserkraft
Delivered between Mon, 7.7. and Mon, 21.7.
More than 10 items in stock at third-party supplier
Supplied by

Product details

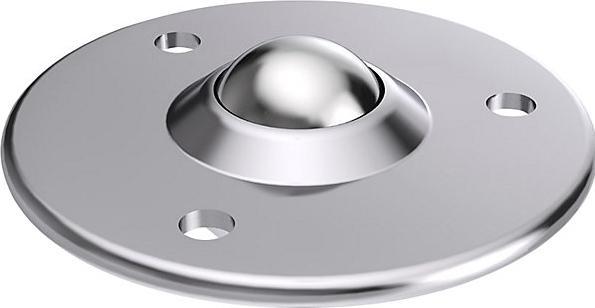

Ball roller with recessed steel sheet housing, plastic ball, load ball diameter 25 mm, load capacity 40 kg.

For easy moving, rotating, and positioning of loads with minimal effort. Smooth operation and precise rolling behavior. Conveying speed up to a maximum of 3 m/s.

These quality ball rollers are suitable for transporting products and goods where the possibility of all-around horizontal movement and rotation around the vertical axis is necessary. They provide low-friction and highly load-bearing transport of goods, allowing for quick direction changes. All ball rollers are housed in galvanized steel sheet casings.

Our ball rollers are characterized by high temperature tolerance and shock resistance. Ball roller with low construction height. For sensitive goods (e.g., glass), we recommend plastic balls and a maximum conveying speed of 0.5 m/s.

To determine the suitable ball roller based on the load: Weight of the goods / 3 = maximum dynamic load of a ball roller.

Available in stainless steel upon request.

Key specifications

Type of conveyor system
Ball transfer table
Lifting height
0.01 m
Load capacity
0.04 t
Material
Galvanized, Sheet steel
Item number
9141350

General information

Manufacturer
kaiserkraft
Category
Conveyor technique
Release date
10.7.2018
External links
Manufacturer's site (de)

Colour

Colour
Silver
Exact colour description
Silver

Material

Material group
Metal
Material
Galvanized, Sheet steel
Surface finish
Galvanized
Roll material
Plastics

Conveyor system properties

Type of conveyor system
Ball transfer table
Lifting height
0.01 m
Load capacity
0.04 t

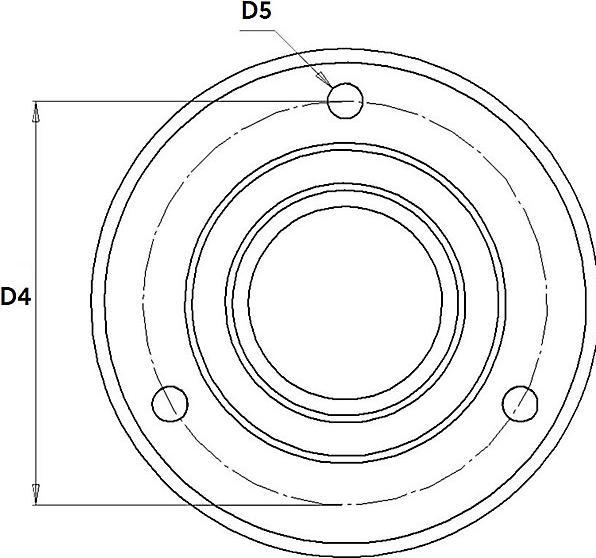

Mounting hole
5.10 mm
Frame material
Steel
Main Hub
0 m/min
Roller storage
Plastic axle bearing

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Height
3 cm
