Product details

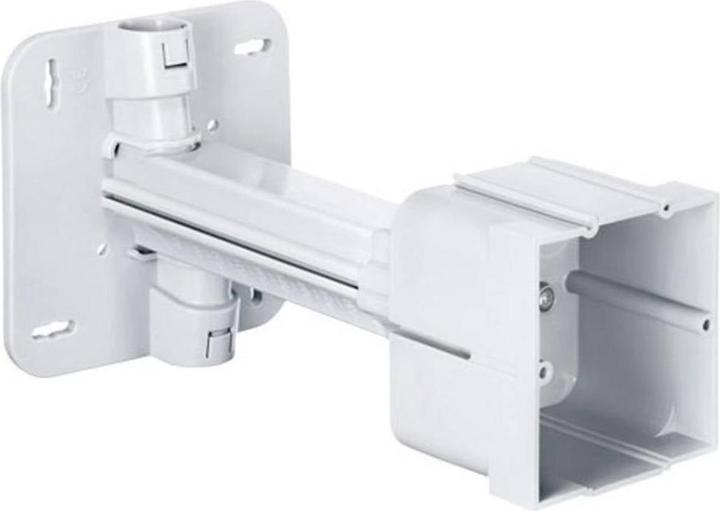

Kaiser telescopic device box 1159-61
Manufacturer: Kaiser
Designation: Telescopic device box
Type: 1159-61
Mounting type: Flush-mounted
Shape: Square
Design: Device box
Version: Single
With rotating ring: No
Coupleable: Yes
Filling: None
Length: 68 mm
Width: 70 mm
Depth: 50 mm
Internal depth: 49 mm
For number of device inserts: 1
Device fastening: Screws
With screws: No
Housing entry through break-out opening: No
Housing entry through sealing membrane: No
Housing entry through pipe socket: No
Housing entry through stepped membrane: No
For pipe diameter: 20 mm
Suitable for cable diameter: 13.3 mm
Pipe locking: Yes
Pipe locking optional: No
Rear entry: Yes
Number of entries: 4
Material: Plastic
Halogen-free: Yes
Surface protection: Untreated
Color: Gray
Protection class (IP): IP20
Cover design: None
Transparent cover: No
Cover fastening: Screwed
Seal-able: No
Function maintenance: None
With shielding: No
Air-tight: No
Max. conductor cross-section: 2.5 mm²
Clamp position fixed: No
Light hook fastening: No
Socket: None
Special application: None
With partition wall: No
Kaiser telescopic device box 1159-61: additional details

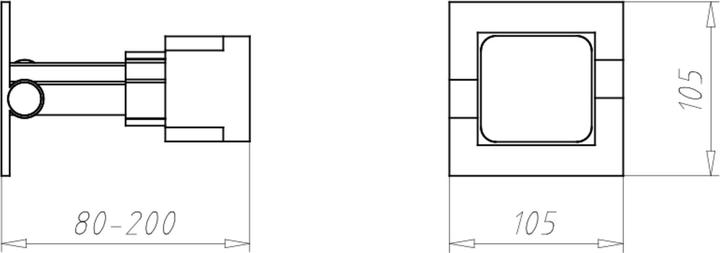

Telescopic device box (1159-61) for the safe installation of lights, motion detectors, and many other devices in and on insulated facades. Optimized for today's insulation thicknesses, the telescopic products allow for diverse applications in insulations ranging from 80 to 200 mm. The two pipe entries of the base carrier ensure a secure pipe connection, and the integrated cable routing in the carrier arm allows for easy and quick cable insertion.
Depth: 50 mm
Application area: Installation on or in the insulated exterior facade
Length: 68 mm
Width: 70 mm
EAN: 4013456537057.
