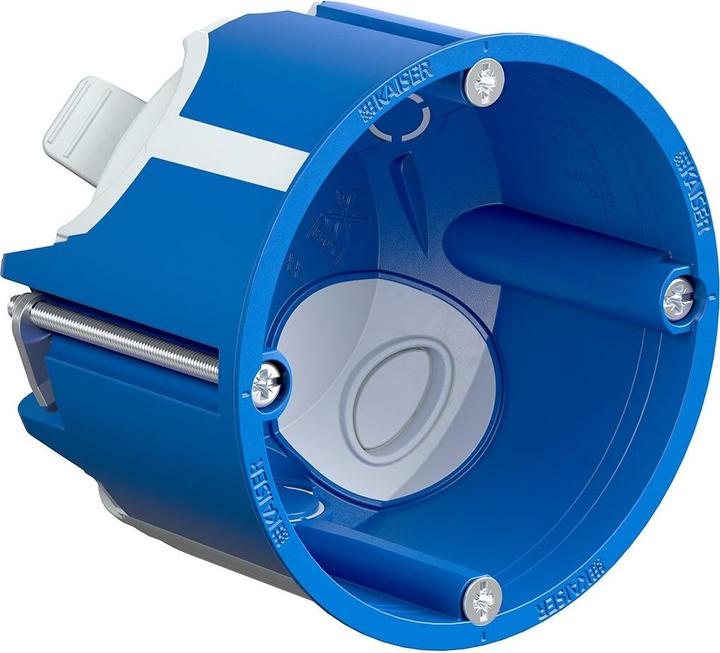

Kaiser Soundproofing box

Kaiser Soundproof Box 9069-03

Manufacturer: Kaiser
Description: Soundproof box for hollow walls, 68 mm
Type: 9069-03
Mounting type: Hollow wall
Shape: Round
Design: Device box
Version: Single
With rotating ring: No
Couplable: Yes
Filling: None
Diameter: 68 mm
Depth: 49 mm
Internal depth: 49 mm
Suitable for wall/plate thickness: 7-40 mm
For number of device inserts: 1
Device fastening: Screws
With screws: Yes
Housing passage through break-out opening: No
Housing passage through sealing membrane: Yes
Housing passage through pipe connector: No
Housing passage through stepped membrane: No
For pipe diameter: 20/25 mm
Suitable for cable diameter: 4-11.5 mm
Pipe locking: No
Pipe locking optional: No
Rear entry: No
Number of entries: 4
Number of supplied bushings: 5
Material: Plastic
Halogen-free: Yes
Color: Blue
Protection class (IP): IP3X
Cover design: None
Transparent cover: No
Cover fastening: Screwed
Seal-able: No
Function maintenance: None
With shielding: No
Air-tight: Yes
Max. conductor cross-section: 2.5 mm²
Clamp position fixed: No
Lamp hook fastening: No
Connector: Other
Special application: Soundproofing
With partition wall: No

Kaiser Soundproof Box 9069-03: Additional Details
Device box soundproof 68 (9069-03). The device and device connection boxes soundproof 68 ensure sound protection of the wall through their solid box body in combination with the sound-absorbing surface at the bottom of the box. Even with directly opposing installation, the soundproofing function of the wall remains fully intact. The easy opening for cables and pipes, along with the installation opening of 68 mm, allows for quick assembly and easy retrofitting in existing electrical installations. Depth: 49 mm | Milling hole Ø: 68 mm.
