Kaiser 128272

Ratings
BrandMore from Kaiser
Delivered between Wed, 15.4. and Tue, 21.4.
More than 10 pieces in stock at supplier
free shipping

Product details

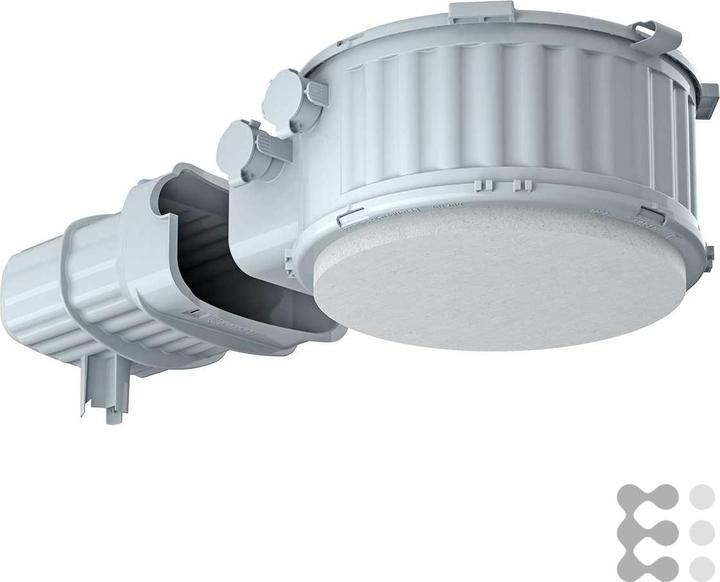

Kaiser Installation Housing HaloX 180 1282-72

Manufacturer: Kaiser
Designation: Installation housing HaloX 180 with tunnel 190
Type: 1282-72
Suitable for HV lamps: yes
Suitable for NV lamps: yes
Suitable for LED lamps: yes
Suitable for lamp power: 75 W
Application: for panel ceilings
With control gear space: yes
Installation height/depth: 120 mm
Max. lamp diameter: 210 mm
Min. ceiling thickness: 160 mm
Material: plastic

The HaloX® 180 with tunnel 190 is designed for factory production (1282-72). The HaloX® system is a one-piece design and features markings on the housing that facilitate alignment on the switch table. The housings with pre-mounted mineral fiber plates can be easily glued and can be adjusted 360° after gluing. For magnetic mounting, housings with pre-mounted front parts for the magnet are available.

Installation tolerances that may arise during the assembly of panel elements are compensated for by the housing size in conjunction with a variable cut-out area. Due to the compact dimensions of the housings, reinforcement can be easily placed around the housing. For fixtures or speakers with greater installation depths ≥ 110 mm, the installation space of the HaloX® housings can be increased on-site with extension rings.

The piping on-site is done tool-free for pipes M20/M25 without shortening the pipes from the inside.

Installation type: Factory production
Installation diameter for fixture/speaker: 0-180 mm
Max. installation depth for fixture/speaker: 110 mm
Depth including front part: 120 mm
Control gear additional space: With additional space
EAN: 4013456547117.

Key specifications

Junction box type
Distribution box
Height
490 mm
Width
400 mm

General information

Item number
22649923
Manufacturer
Kaiser
Category
Junction box
Manufacturer no.
1282-72
Release date
12.10.2022
External links
Manufacturer's site (de)

Material

Material group
Plastic
Material
Plastic

Junction Box Features

Junction box type
Distribution box
mounting style
Screws
Area of use
Inside

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
0.87 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Height
490 mm
Width
400 mm
Diameter
180 mm
