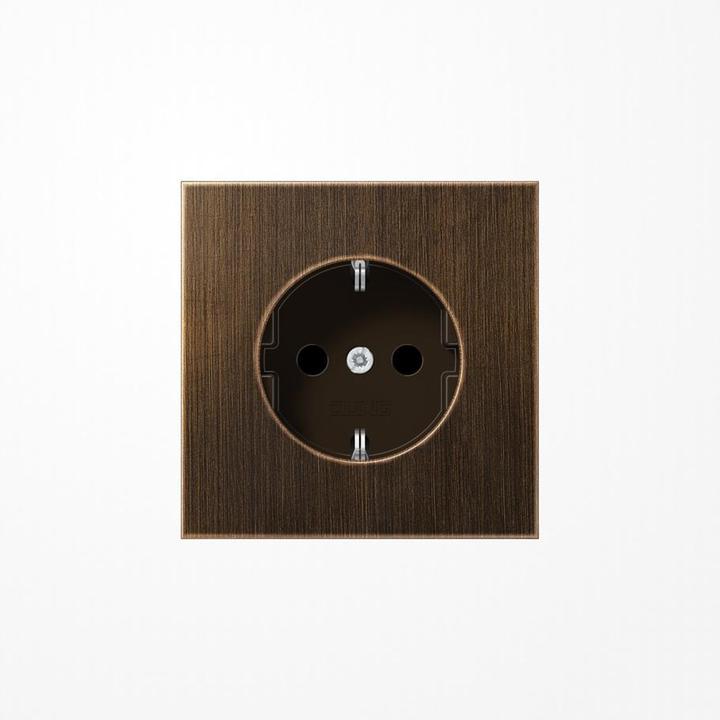

JUNG SCHUKO socket outlet

Jung Schuko Socket 16A 250V ME 1520 N AT

Manufacturer: Jung
Description: Schuko socket 16A 250V without claws
Type: ME 1520 N AT
Design: Schuko
Protective contact: Yes
Round protective earth contact: No
Number of active contacts (round): 2
With indicator light: No
With integrated USB power supply: No
Number of units: 1
Number of phases: 1
Imprint/labeling: None
Connection type: Screw terminals
With flap cover: No
With increased touch protection: No
Text field/labeling area: No
Color: Brass
RAL number (similar): 8014
Metallic color: No
Transparent: No
Lockable: No
Ejector mechanism: No
Insulated installation: No
With functional lighting: No
With orientation light: No
Surge protection: No
Residual current protection: No
With fine fuse: No
Special power supply: Without special power supply
Mounting type: Flush-mounted
Fastening: With screw
Material: Metal
Material quality: Brass
Halogen-free: Yes
Surface protection: Other
Surface: Matt
Antibacterial treatment: No
With on/off switch: No
With pass-through function: Yes
Twisted central insert: No
Rated current: 16 A
Rated voltage: 250 V
Suitable for protection class (IP): IP20
Device width: 70 mm
Device height: 70 mm
Device depth: 0 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No
Cover: Central plate
For "difficult conditions" (according to VDE): No

Jung Schuko Socket 16A 250V ME 1520 N AT: Further details on the protective contact socket, antique brass with spring terminals for rigid and untreated flexible conductors up to 2.5 mm². Connection terminals according to DIN VDE 0620 (screw fastening, without fastening claws). The retaining ring is integrated into the protective measure via a grounding rail. Material: Brass. Dimensions (W x H): 70 x 70 mm.
