JUNG SCHUKO socket outlet

Jung Schuko Socket 16A 250V CD 1520 NBFKL

Manufacturer: Jung
Description: Schuko Socket 16A 250V with Flap Cover
Type: CD 1520 NBFKL
Design: Schuko
Protective contact: yes
Round protective earth contact: no
Number of active contacts (round): 2
With indicator lamp: no
With built-in USB power supply: no
Number of units: 1
Number of phases: 1
Printing/Labeling: none
Connection type: terminal block
With flap cover: yes
With increased touch protection: no
Text field/Labeling area: no
Color: white
RAL number (similar): 1013
Metallic color: no
Transparent: no
Lockable: no
Eject mechanism: no
Insulated installation: no
With functional lighting: no
With orientation light: no
Surge protection: no
Residual current protection: no
With fine fuse: no
Special power supply: none
Mounting type: flush-mounted
Mounting method: screw fastening
Material: plastic
Material quality: thermoplastic
Halogen-free: yes
Surface protection: other
Surface finish: glossy
Antibacterial treatment: no
With on/off switch: no
With pass-through function: no
Twisted central insert: no
Rated current: 16 A
Rated voltage: 250 V
Suitable for protection class (IP): IP44

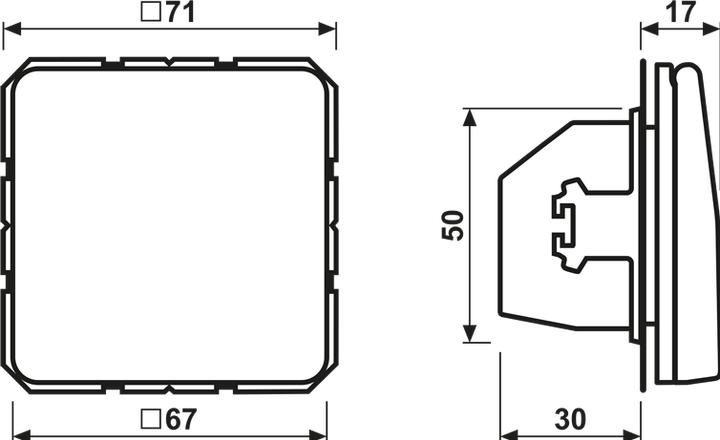

Device width: 67 mm
Device height: 67 mm
Device depth: 0 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no
Cover: central plate
For "harsh conditions" (according to VDE): no

Jung Schuko Socket 16A 250V CD 1520 NBFKL: additional details
Protective contact socket, white with flap cover (with reset spring) with spring clamps for rigid and untreated flexible conductors up to 2.5 mm². Connection terminals according to DIN VDE 0620 (screw fastening, without mounting claws). The load ring is integrated into the protective measure via a grounding rail. Material: thermoplastic. Dimensions (W x H): 67 x 67 mm.
