JUNG Frame

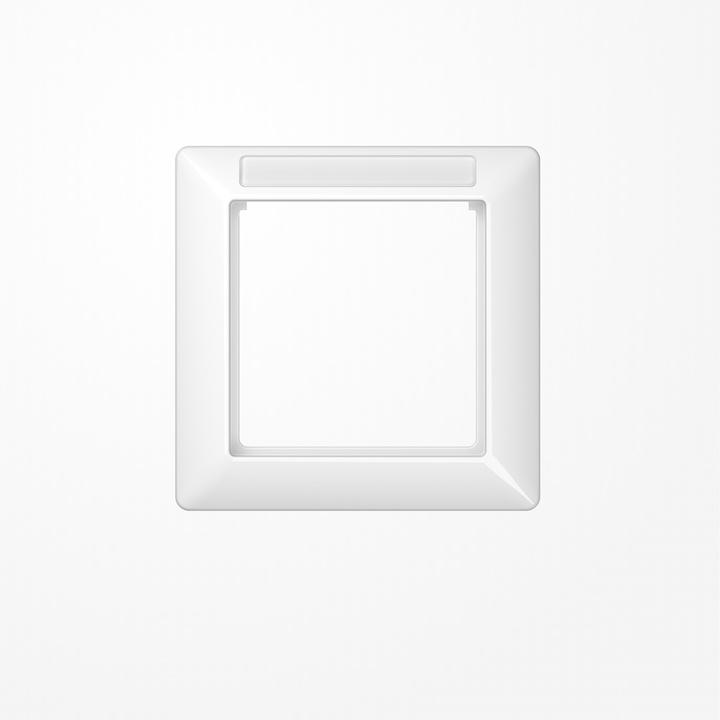

Jung Frame, single vertical AS 581 BF INA WW

Manufacturer: Jung
Description: Frame, single vertical spray mist tight
Window Type: AS 581 BF INA WW
Number of Units: 1
Mounting Direction: horizontal and vertical
Number of Units Horizontal: 1
Number of Units Vertical: 1
With Mounting Frame: no
Flush Mounting: yes
Suitable for Device Installation Channel: yes
Suitable for Built-in Installation: yes
Text Field/Label Area: yes
Material: Plastic
Material Quality: Thermoplastic
Halogen-Free: yes
Antibacterial Treatment: no
Surface Protection: other
Surface Finish: glossy
Color: white
RAL Number (similar): 9016
Transparent: no
With Flip Cover: no
Protection Class (IP): IP2X
Mounting Type: other
Width: 80.5 mm
Height: 80.5 mm
Depth: 10 mm

Jung Frame, single vertical AS 581 BF INA WW: further details with window (spray mist tight) 55.6 x 9.2 mm including label field carrier. Article No.: AS 81 INA BT, also compatible with label field carrier AS 81-1 INA BT. When the frame is removed, the label field carrier remains locked in the mounting ring. Version: single vertical and horizontal mounting. IP20. EAN: 4011377030428.
