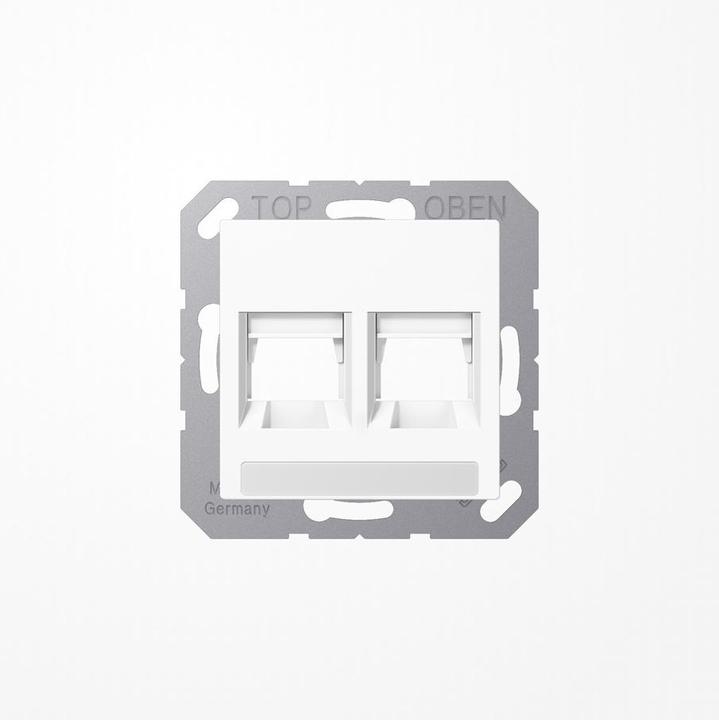

JUNG Cover

Jung cover A 1569-25 NA WE WW

Manufacturer: Jung
Designation: Cover for modular jack
Type: A 1569-25 NA WE WW
Composition: Other
Use: Modular jack
Support ring: Yes
With dust protection: Yes
With hinged cover: No
Outlet direction: Straight
Labelling field: With labelling field
With imprint: No
Mounting type: Surface-mounted
Material: Plastic
Material quality: Thermoplastic
Halogen-free: Yes
Antibacterial treatment: No
Surface finish: Glossy
Colour: White
RAL number (similar): 9016
Transparent: No
Mounting type: Clamp mounting
With sockets/couplings: No
Suitable for number of sockets/couplings: 2
With strain relief: No
Housing shielded: No
Luster terminal: No
With lighting: No
Suitable for degree of protection (IP): IP20
Device width: 55 mm
Device height: 55 mm

Further details (complete with support ring, screw fastening):
Cover with return spring for modular jack sockets TE Connectivity (Tyco Electronics / AMP NETCONNECT) for cable diameter max. 10 mm:

• EMT Cat. 5e, 180°
• EMT Cat. 5e, 90°

For cable diameter max. 6.5 mm:

• EMT Cat. 5e, 180°
• EMT Cat. 5e, 90°

Toolless Jack Cat. 3 unshielded:
Toolless Jack Cat. 5e unshielded:
Toolless Jack Cat. 5e shielded:
Toolless Jack Cat. 6 unshielded:
Toolless Jack Cat. 6 shielded:
MTRJ-LWL-Jack (fibre optic cable):
Deep socket (min. 62 mm) required for 2 sockets.
