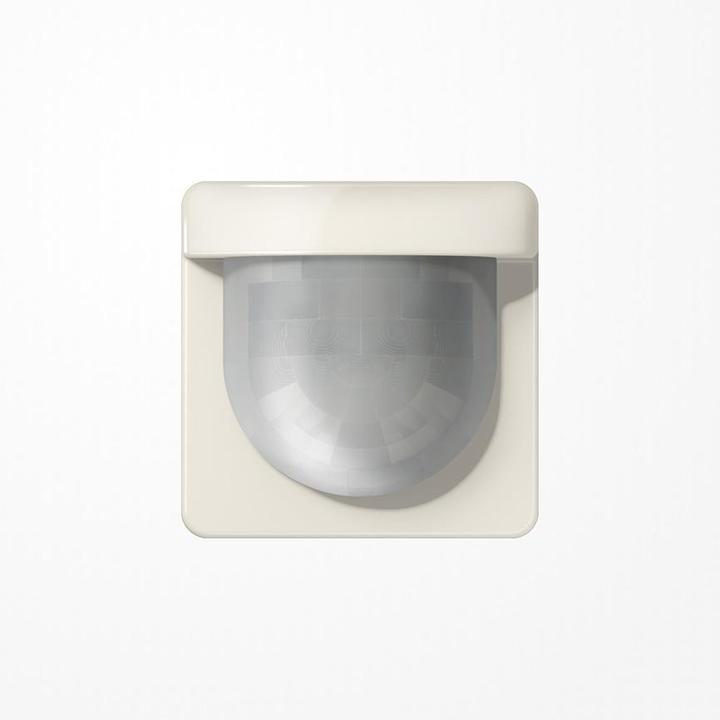

JUNG CD17280

Sensitivity and brightness threshold adjustable for lighting applications. Article numbers: 1701 SE, 1701 PSE, 1702 SE, 1704 ESE, 1710 DE, 1711 DE, 1713 DSTE, 1723 NE, 1708 IE. With sealing set article number: AS CD 50 DS and program-specific IP44 frame, the protection degree IP44 is ensured. IP44 installation is only permitted indoors.

Intended use: Automatic switching of lighting based on heat movement and ambient brightness. Operation with system device for switching or dimming or auxiliary switch 3-wire. Wall mounting on system device.

Product features: Extension of the detection range in combination with auxiliary switch 3-wire. Operation with auxiliary switch 2- or 3-wire, rotary auxiliary switch, or push button. Adjustable brightness threshold. Adjustable sensitivity. Fixed after-run time. Turn on with last brightness or fixed switch-on brightness, with dimming device. Switch-on brightness can be permanently stored via auxiliary switch, with dimming device. Light can be dimmed via auxiliary switch, with dimming device. Ambient temperature: -20 to +45 °C. Storage/transport temperature: -25 to +70 °C. Brightness setting: approx. 5 to 1,000 lx (and day operation). Sensitivity: 25, 50, 75, 100 %. After-run time: approx. 2 min. Mounting height: 1.10 / 2.20 m. Detection angle: 180°.

Detection range (mounted at 2.20 m): Sensitivity 25 %: max. 7 m, Sensitivity 50 %: max. 11 m, Sensitivity 75 %: max. 13 m, Sensitivity 100 %: max. 15 m. Detection range (mounted at 1.10 m): Sensitivity 25 %: max. 7 m, Sensitivity 50 %: max. 8 m, Sensitivity 75 %: max. 9 m, Sensitivity 100 %: max. 10 m. Material: Thermoplastic. Dimensions (W x H): 67 x 67 mm.
