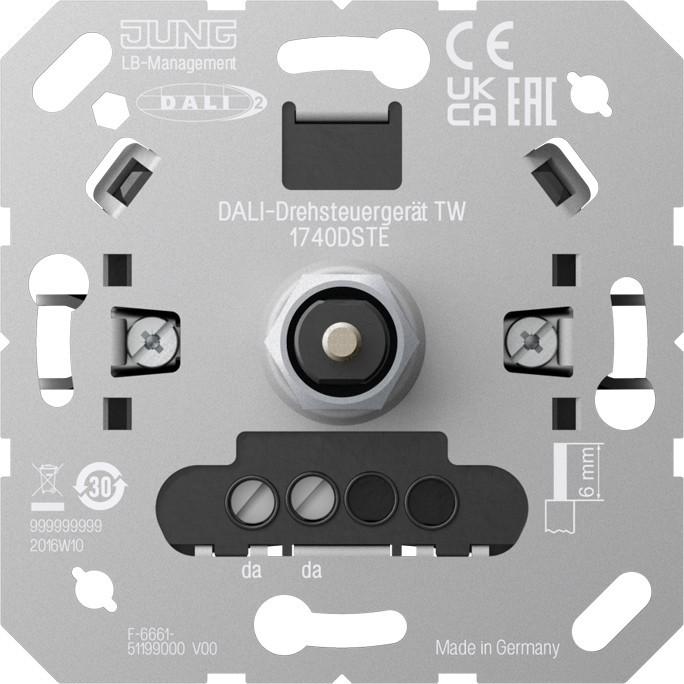

JUNG 1740DSTE

Intended Use: Brightness adjustment for lights with DALI/DALI-2 interface, color temperature adjustment for lights with DALI Device Type 8 for Tunable White according to IEC 62386-209. Installation in device box with dimensions according to DIN 49073.

Product Features: The DALI rotary controller TW draws power from the DALI voltage, which must be provided by an external DALI power supply according to IEC 62386-101. It stores color temperature limits, basic brightness, and a switch-on brightness. Certified according to IEC 62386-101 and -103 (Single Master). The device operates as a DALI-2 Single Master and must not be combined with other DALI controls. (External DALI power supply according to IEC 62386-101 is necessary).

Nominal DALI Voltage: DC 16 V (typ.), Power Consumption: max. 2 W, Ambient Temperature: -5 ... +45 °C, Color Temperature Adjustment: 2,000 ... 10,000 K.
