Jumo Differential pressure switch 4ADS-82

Jumo differential pressure switch 4ADS-82

Manufacturer: Jumo
Designation: Differential pressure switch
Type: 4ADS-82
Suitable as monitor: Yes
Suitable as 2-point controller: No
Suitable as limiter: Yes
Max. working pressure: 500 hPa
Switch-on pressure: 0.001 bar
Initial setting: 1 hPa
Switch-off pressure: 0.01 bar
Final setting: 10 hPa
Pressure switching differential: 0.005 bar
Max. test pressure: 0 bar
Test pressure: 0 bar
Burst pressure: 0 bar
Medium temperature: -15 to 60 °C
Rated operating voltage Ue at AC 50 Hz: 0 V
Rated operating voltage Ue at AC 60 Hz: 0 V
Rated operating voltage Ue at DC: 0 V
Initial value measuring range pressure: 0 Pa
Final value measuring range pressure: 1000 Pa
Rated operational power at AC-3, 400 V: 0 kW
Breaking capacity at AC-3, 240 V: 0.006 kA
Rated operational current Ie at AC-1, 400 V: 0 A
Rated operational current Ie at AC-3, 400 V: 0 A
Electrical connection type: Screw connection
Adjustable current range: 0 A
With manual override: No
With manual on/off switch: No
Electronic version: No
Explosion-proof: No
Protection class (IP): IP54

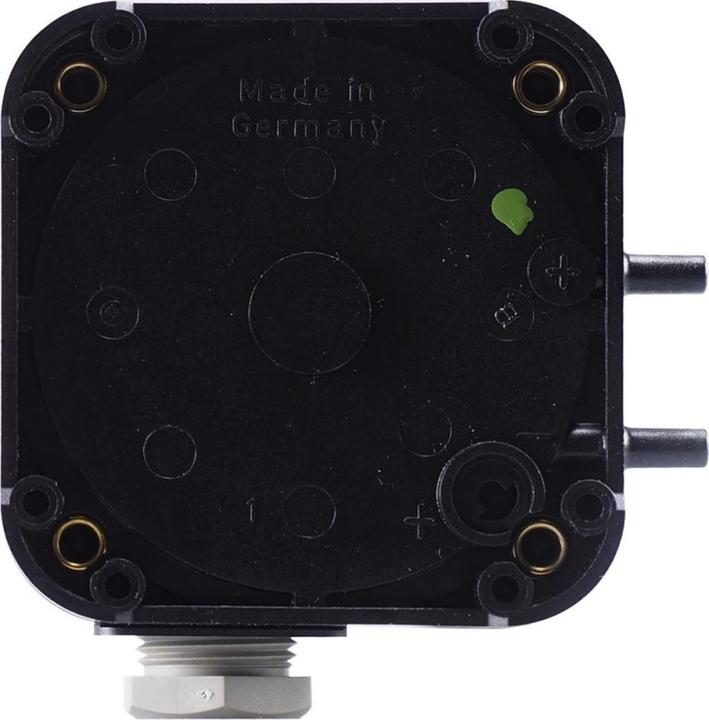

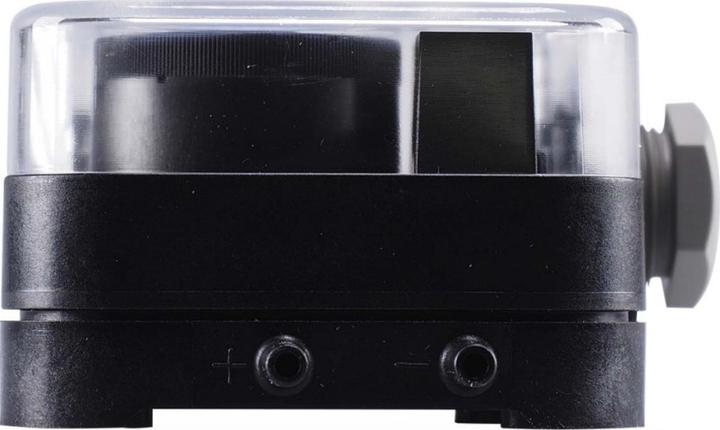

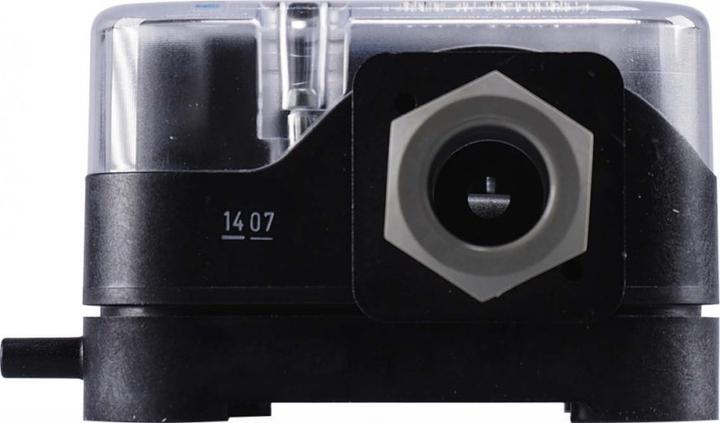

The differential pressure switch in a surface-mounted housing is suitable for switching a circuit on/off or over when the pressure changes. The setpoint (switching point) is adjusted manually by means of a dial with scale. The circuit is switched when the pressure exceeds or falls below the setpoint. The permissible ambient and medium temperature is -15 to +60 °C. The process connection is made via two hose sockets with a diameter of 4.6 mm.
