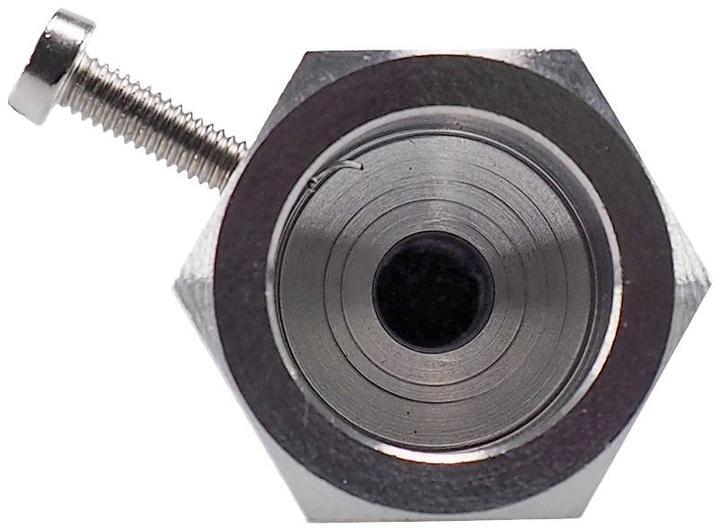

Jumo 60003378

Jumo ATEX Protection Sleeve 60003378

Manufacturer: Jumo
Designation: ATEX Protection Sleeve
Installation Length: 300 mm
Type: 60003378
Version: Single
Material of Immersion Tube: Stainless Steel
Material Quality: Stainless Steel 316 Ti (1.4571)
Pressure Class of Item: Other
Nominal Diameter of Connection: 1/2 inch (15)
Inner Diameter: 8 mm
Outer Diameter: 10 mm
Insertion Length: 300 mm
Suitable for Mano-Thermometers: No

The screw-in protection sleeve made of stainless steel (Material No. 1.4571) has a diameter of 10 mm and is suitable for a sensor with a diameter of 6 mm. The attachment is made via a G 1/2 thread type A according to DIN 3852/2. The protection sleeve is suitable for Ex-zone separation due to its wall thickness of 1.5 mm. The sleeve has an ATEX approval according to EN 600079 and is delivered with a certificate of conformity 3.1 according to DIN EN 10204. The maximum permissible pressure load at a temperature of 100 °C is 74 bar. The sleeve can be used in explosion-prone areas.
