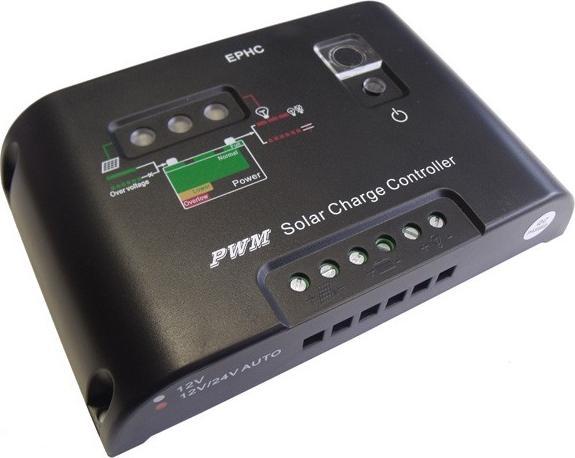

IHP Solar Laderegler Controller 12V/24V 10 A

1366 - Solar Charge Controller 12V/24V 10A
This charge controller serves as the optimal connection piece in your collector system and ensures a clean transmission of the flowing current.

Once integrated into your system, the device operates fully automatically and guarantees perfect results thanks to its user-friendly handling.

This charge controller is designed for a 12 V system. If you wish to operate a 24 V system (for example, using a truck battery), two of these controllers must be used. In this case, the following voltage specifications would also double.

Technical specifications:
System voltage: 12/24 V
Charging current: 10 A
Equalization charging voltage: 14.8 V
PWM pulse width modulation voltage: 14.2 V
Charge recovery voltage: 13.2 V
Discharge recovery voltage: 12.6 V
Discharge current: 10 A
Max. solar panel voltage: 40 V
Self-consumption: < 6 mA
Voltage drop of the charging circuit: < 0.26 V
Voltage drop of the discharging circuit: < 0.15 V
Bulk charging voltage: 14.2 V
Float charging voltage: 13.8 V
Discharge stop voltage: 11.2 V
Temperature compensation: -4 mV/°C/2 V
Voltages x2 for 24 V operation.
