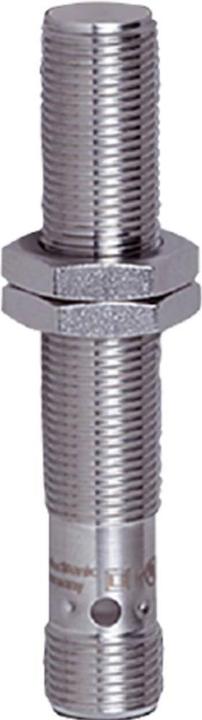

ifm Electronic IFM inductive sensor

Ifm Electronic proximity switch IFT205
Manufacturer: Ifm Electronic
Designation: Proximity switch inductive
Type: IFT205
Sensor length: 70 mm
Sensor diameter: 12 mm
Mechanical installation condition for sensor: flush
Switching distance: 4 mm
Suitable for safety functions: no
Switching function version: NO contact
Switching output version: PNP
Electrical connection version: M12 plug connector
Number of semiconductor outputs with signalling function: 1
Number of safe contact outputs: 20
Type of actuation: metallic target
Interface design: without
Interface design for safety-related communication: without
Housing design: cylinder, thread
Coating housing: other
Cascadable: no
Max. output current at safe output: 100 mA
Supply voltage: 10..36 V
Rated control supply voltage Us at DC: 10...36 V
Voltage type: DC
Switching frequency: 500 Hz
With monitoring function of downstream devices: no
Housing material: Metal
Flameproof: no
Explosion protection category for gas: none
Explosion protection category for dust: without

Further details:
Inductive sensors, inductive sensor, M12 x 1, metal thread, switching distance: 4 mm, flush-mountable, 3-wire, 3-wire DC PNP, 2-wire DC PNP/NPN, operating voltage: 10...36 V DC, current consumption: 10 mA, NO contact, plug connection, M12 plug connection, operation as 3-wire or 2-wire possible, increased switching distance, optical adjustment aid (2 LEDs), gold-plated contacts, housing material: V4A (316L), active surface: PEEK (polyether ether ketone).
