IB Connect Built-in socket
Socket type3
Product details

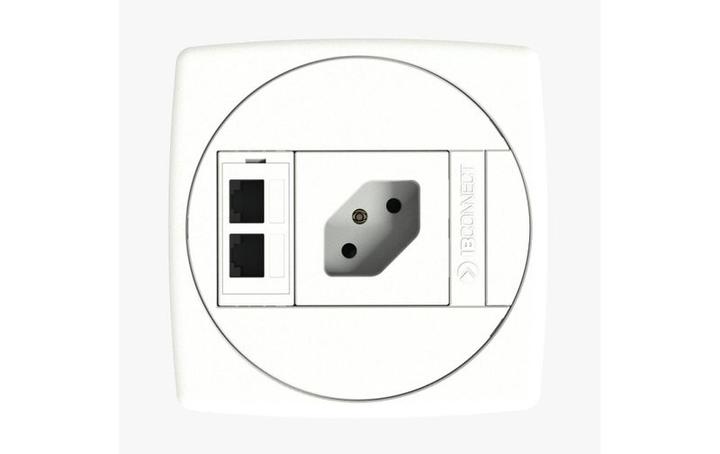

Socket unit in profile white RAL9010 with 1x Type 13 and 2x RJ45 Cat 6. Material: Polycarbonate. Supply line: Connector suitable for use with AC166 and the market standard H05VV-F3G1.5, length 0.3 m.
The UNIT connection panels are a simple installation solution for electrifying workstations, suspended ceilings, and mobile walls with panel thicknesses of 8 to 42 mm. With a diameter of 110 mm, it allows for the installation of sockets, data, and multimedia modules.
This socket unit in white offers three sockets. The available connections include one Type 13 socket and two RJ45 Cat 6 connections. The supply is via a multi-purpose device plug and a supply cable with a length of 0.3 m. The increased touch protection prevents the insertion of needles and other thin objects into the sockets, effectively protecting small children from electrical accidents.
Exact colour description | White |
Socket type | RJ45, Type 13 |
Number of cans | 1x |
Mounting type | Built-in installation |
Item number | 23132736 |
Manufacturer | IB Connect |
Category | Sockets |
Manufacturer no. | 46102002S10-1 |
Release date | 16.11.2022 |
Colour | White |
Exact colour description | White |
Material group | Plastic |
Material | Polycarbonate (PC) |
Socket type | Built-in socket |
Socket type | RJ45, Type 13 |
Number of cans | 1x |
Protection type (IP code) | IP20 |
Mounting type | Built-in installation |
Additional properties | Contact protection |
Smart home | Not compatible |
CO₂ emissions | 20.99 kg |
Climate contribution | CHF 0.50 |
Cable length | 0.30 m |
Length | 11 cm |
Width | 11 cm |
Height | 5.95 cm |
Weight | 317 g |
Length | 15 cm |
Width | 13 cm |
Height | 12 cm |
Weight | 316 g |
