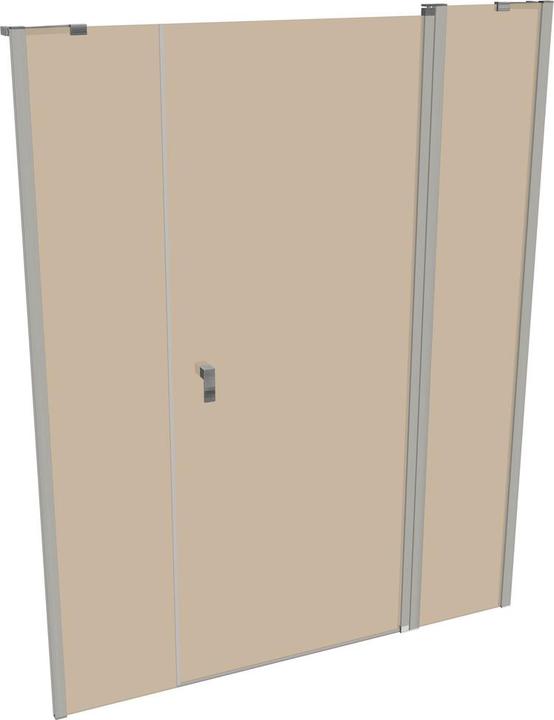

Hüppe Design pure 4-corner swing door with fixed segment and side panel in niche, width:160cm height:200cm

HÜPPE Design Pure 1xSquare Swing Door with Fixed Segment and Side Panel for Niche Installation. Profile made of 6 mm single-pane safety glass (ESG), profiles made of high-quality anodized aluminum.

Product Features:

• For installation in a niche
• Semi-framed door with one glass leaf and a fixed segment, opening inwards and outwards, along with a side panel
• Includes stabilizer (inside)
• Adjustable in the wall profile by 15 mm
• Can be installed with a splash guard strip (height 10 mm) or without a threshold
• Continuous magnetic strips and sealing profiles, as well as a water-repellent horizontal sealing strip
• Tube hinge with infinitely adjustable lift-lower mechanism and 5 mm lifting effect
• Installation without visible screws in the wall strip area
• Assembly condition: partially assembled, can be installed left/right depending on the door's swing direction

Dimensions:

• Height: 200 cm
• Width of Fixed Panel: 41.5 - 43 cm
• Bathtub installation dimension in niche: 158.5 - 161.5 cm
• Standard entry width: 78 cm
• Standard adjustment range: 3 cm
• Floor-level installation possible
• Installation on tiled floors and shower trays possible

Delivery Contents:

• Mounting materials
• Assembly instructions

Installation Accessories:
For a widening of 15 mm for a fixed segment/side panel, the widening profile (Item No.: 8P4201 for 1900 mm height or Item No.: 8P4202 for 2000 mm height) can be used. Please order separately! The specified dimensions of the shower cabin refer only to installation on shower trays. For floor-level installation, the dimensions may vary; please provide the exact measurements of the shower area before ordering! It is recommended to use the measurement and installation service for this item!.
