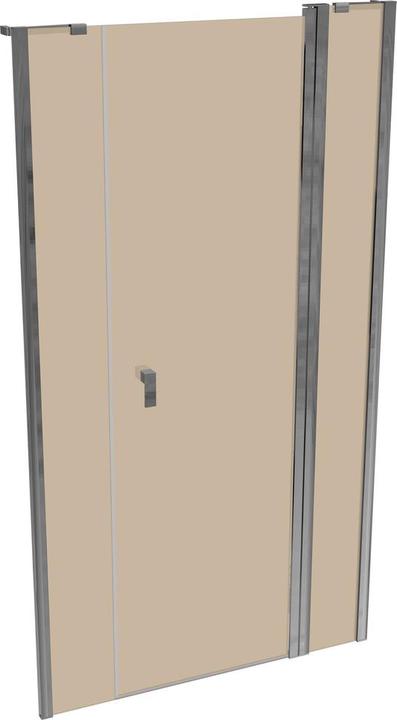

Hüppe Design pure 4-corner swing door with fixed segment and side panel in niche, width:110cm height:200cm

HÜPPE Design Pure 1x Square Swing Door with Fixed Segment and Side Panel for Niche Installation. Profile made of 6mm single-pane safety glass (ESG), profiles made of high-quality anodized aluminum.

Product Features:

• Designed for installation in a niche
• Semi-framed door with one glass wing and a fixed segment, opening inwards and outwards, along with a side panel
• Includes stabilizer (inside)
• Adjustable in the wall profile by 15mm
• Can be installed with a splash guard strip (height 10mm) or without a threshold
• Continuous magnetic strips and sealing profiles, as well as a water-repellent horizontal sealing strip
• Tube hinge with infinitely adjustable lift-lower mechanism and 5mm lifting effect
• Installation without visible screws in the wall strip area
• Assembly state: partially assembled, usable left/right depending on door swing direction

Dimensions:

• Height: 200 cm
• Width of fixed panel: 26 - 27.5 cm
• Bathtub installation measurement in niche: 108.5 - 111.5 cm
• Standard entry width: 58 cm
• Standard adjustment range: 3 cm
• Floor-level installation possible
• Installation on tiled floors and shower trays possible

Delivery Contents:

• Included in the delivery: fastening materials, assembly instructions
• Installation accessories: For a widening of 15mm for a fixed segment/side panel, the widening profile (Item No.: 8P4201 for 1900mm height or Item No.: 8P4202 for 2000mm height) can be used. Please order separately!

The specified dimensions of the shower enclosure refer only to installation on shower trays. For floor-level installation, the dimensions may vary; please provide the exact measurements of the shower area before ordering! For this item, measuring and installation service is recommended!.
