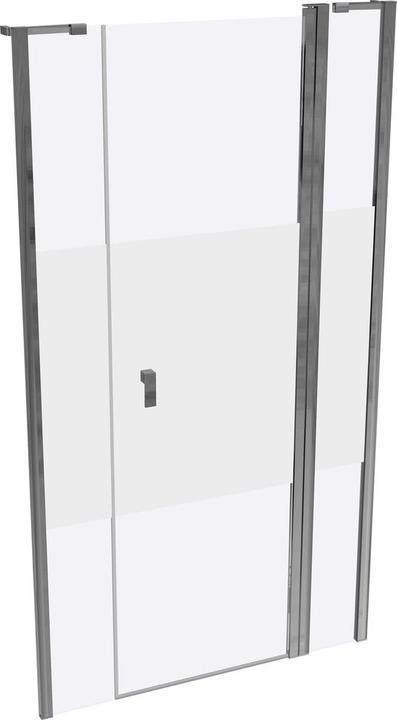

Hüppe Design pure 4-corner swing door with fixed segment and side panel in niche, width:110cm height:200cm

HÜPPE Design pure 1x square swing door with fixed segment and side panel for niche installation. Profile made of 6 mm single-pane safety glass (ESG), profiles made of high-quality anodized aluminum.

Product features:

• For installation in a niche
• Semi-framed door with one glass leaf and fixed segment, opening inwards and outwards, along with a side panel
• Includes stabilizer (inside)
• Adjustment option in the wall profile of 15 mm
• Can be installed with a splash guard strip (height 10 mm) or threshold-free
• Continuous magnetic strips and sealing profiles as well as water-repellent horizontal sealing strip
• Tube hinge with continuously adjustable lift-lower mechanism and 5 mm lifting effect
• Installation without visible screws in the wall strip area
• Assembly condition: partially assembled, can be installed left/right depending on door swing

Dimensions:

• Height: 200 cm
• Width of fixed panel: 26 - 27.5 cm
• Bathtub installation dimension in niche: 108.5 - 111.5 cm
• Standard entry width: 58 cm
• Standard adjustment range: 3 cm
• Floor-level installation possible
• Installation on tiled floor and shower tray possible

Delivery includes:

• Mounting materials
• Installation instructions

Installation accessories:
For a 15 mm widening for a fixed segment/side panel, the widening profile (Item No.: 8P4201 for 1900 mm height or Item No.: 8P4202 for 2000 mm height) can be used. Please order separately!

The specified dimensions of the shower cabin refer only to installation on shower trays. For floor-level installation, the dimensions may vary; please provide the exact measurements of the shower area before ordering! For this item, measuring and installation service is recommended!.
