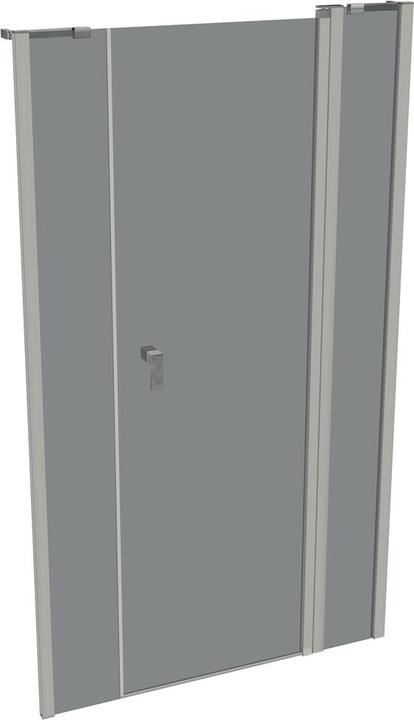

Hüppe Design pure 4-corner swing door with fixed segment and side panel in niche, width:110cm height:190cm

HÜPPE Design Pure 1xSquare Swing Door with Fixed Segment and Side Panel for Niche Installation. Made from 6mm toughened safety glass (ESG) and high-quality anodized aluminum profiles.

Product Features:

• Designed for installation in a niche
• Semi-framed door with one glass panel and a fixed segment, opening inwards and outwards, along with a side panel
• Includes stabilizer (inside)
• Adjustable wall profile by 15mm
• Can be installed with a splash guard strip (height 10mm) or without a threshold
• Continuous magnetic strips and sealing profiles, as well as a water-repellent horizontal sealing strip
• Tube hinge with infinitely adjustable lift-lower mechanism and 5mm lifting effect
• Installation without visible screws in the wall trim area
• Assembly condition: partially assembled, can be installed left/right depending on the door swing direction

Dimensions:

• Height: 190 cm
• Width of Fixed Panel: 26 - 27.5 cm
• Bathtub Installation Dimension in Niche: 108.5 - 111.5 cm
• Standard Entry Width: 58 cm
• Standard Adjustment Range: 3 cm
• Floor-level installation possible
• Installation on tiled floors and shower trays possible

Delivery Includes:

• Mounting materials
• Assembly instructions

Installation Accessories:
For a 15mm widening for a fixed segment/side panel, the extension profile can be used. Please order separately! The specified dimensions of the shower enclosure refer only to installation on shower trays. For floor-level installation, the dimensions may vary; please provide the exact measurements of the shower area before ordering! For this item, measuring and installation service is recommended!.
