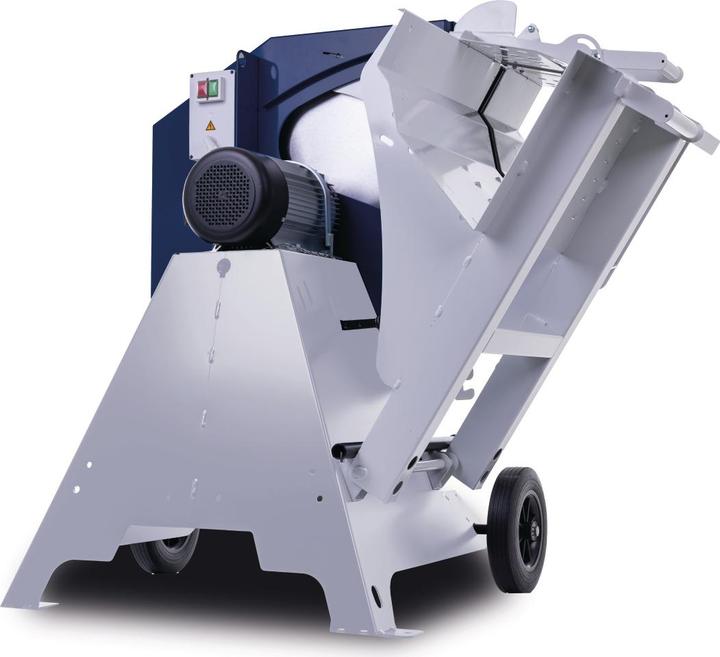

Holzkraft Rocking circular saw HWS 702 K 400V

Closed and secure sawing area for increased safety due to the legally required saw protection device. Quick and ergonomic handling with the patented protective flap. Wood is secured against twisting by stamped hooks in the cradle. Stable, torsion-resistant steel frame. Robust and powerful circular saw motor. Energy-saving operation due to the ideal pivot point of the cradle. Transport device for easy mobility. Shock, scratch, and weather-resistant thanks to high-quality powder coating. GS certification mark. Phase inverter available for all 400 V models.

Technical Data:
Dimensions and Weights:
Length (Product) approx. 1270 mm
Width/Depth (Product) approx. 730 mm
Height (Product) approx. 1130 mm
Weight (Net) approx. 121.5 kg
Cradle support 735 mm

Drive:
Drive type: Electric motor with direct drive

Electrical Data:
Connection voltage 400 V
Network frequency 50 Hz
Output power 6 kW
Input power 7.5 kW

Noise Emission:
Sound pressure level Lp 92 dB(A)
Sound pressure level Lp at idle 85 dB(A)
Sound power level Lw 102 dB(A)
Sound power level Lw at idle 95 dB(A)

Saw Blade:
Peripheral speed saw blade 51 m/s
Saw blade diameter 700 mm

Cutting Performance:
Max. cutting performance cradle round wood 240 mm
Max. cutting performance cradle cross-cut 250 mm
Max. cutting performance cradle firewood 370 x 240 mm

Scope of Delivery:
HM saw blade Ø 700 mm Z42
Cradle extension.
