HKL device installation system KES-3.3.20

Manufacturer: HKL
Designation: Device installation system
Dimensions: 183.5 mm, NV=250V/16A
Type: KES-3.3.20
Number of units: 3
Mounting type of box: Front
Version: Closed
Device type: Other
Mounting track: Other
Mounting type installation device: Snap-in
Strain relief option: Yes
With connection compartment: Yes
Material: Other

Further details:
The device installation system is pre-assembled, triple, horizontal, and pre-wired ready for connection. It comes complete with an adapter and cover frame, featuring a socket insert for safety power supply, designed for snapping onto the cover mounting contour of the BU65. It is recommended for normal use. For special loads (e.g., schools, workshops, sports halls), we recommend using our accessory mounting boxes KED... in conjunction with an appropriate switch range.

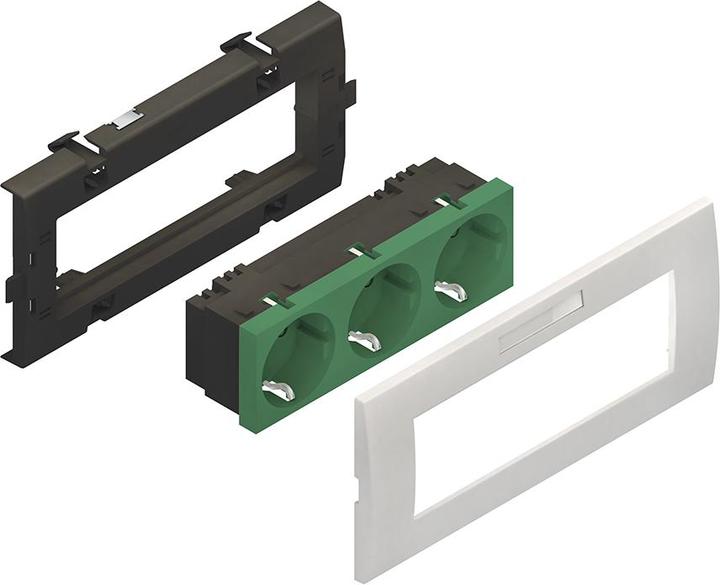

Set consists of:

  • 1 x Component adaptor, triple, Modul 45, with 2 spring clips
  • 1 x Socket outlet insert, triple, horizontal, with plug-in terminals for cables 1.5 - 2.5 mm², 2-pole, with contact hazard protection
  • 1 x Cover frame, triple, Modul 45, including viewing window with label for labelling field
  • 1 x Mounting instructions

The cross-section of approximately 1134 mm² must be deducted from the usable cross-section of the device trunking.

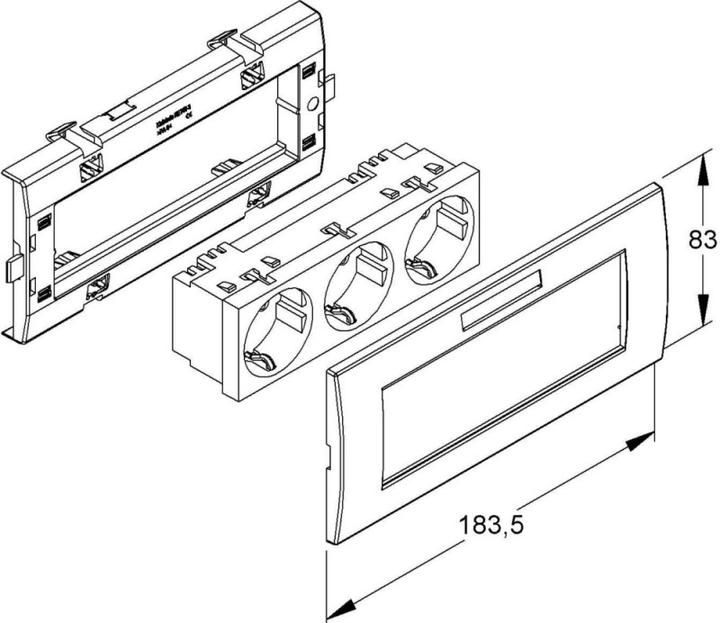

Dimensions (approx.): H x W: 83 x 183.5 mm for cover opening: 80 mm
Rated voltage: 250V / 16A
Socket insert colour: Mint green RAL: 6029 (similar)
Cover frame colour: Pure white RAL: 9010 (similar)
EAN: 4011126008470.

Key specifications

Junction box type
Connector socket
Height
83 mm
Width
183.50 mm

General information

Item number
34718890
Manufacturer
HKL
Category
Junction box
Manufacturer no.
KES-3.3.20
Release date
17.5.2023

Colour

Colour
Green
Exact colour description
Mint green RAL 6029, Pure white RAL 9010

Material

Material
Other

Junction Box Features

Junction box type
Connector socket
Area of use
Inside

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
0.87 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
3 pcs.

Product dimensions

Height
83 mm
Width
183.50 mm

30-day right of return
24 Months Warranty (Bring-in)
