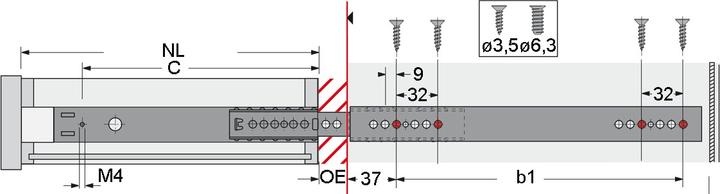

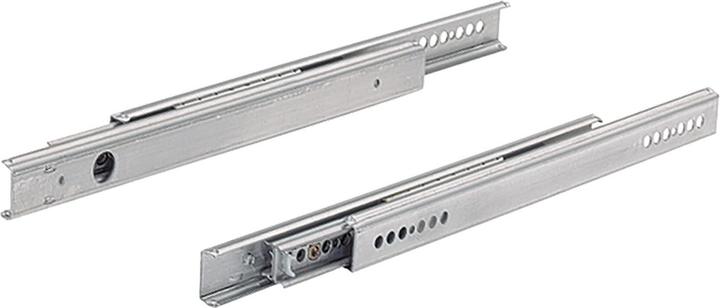

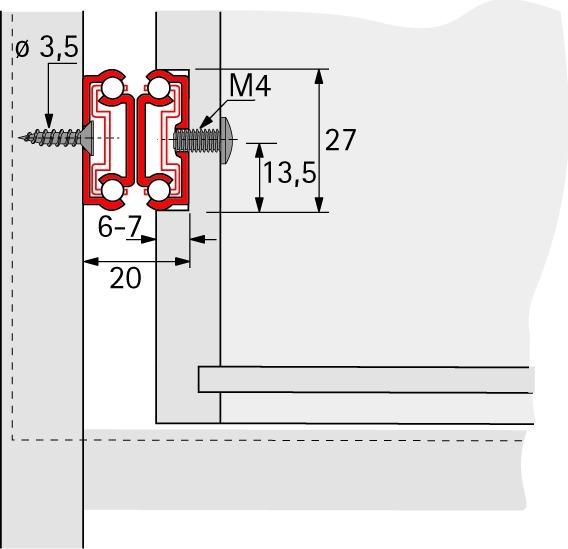

Hettich KA 290 partial-extension ball bearing slide, slot assembly 27 mm for screw-on mounting. Guided in steel ball tracks, with pull-out stop and roll-out protection, including 2 screws M4x9 mm. Drawer length 450-550 mm.
Extension type | Over-extension |
Max. load | 20 kg |
Items per sales unit | 1 Piece |
Length | 550 mm |
Exact colour description | Steel |
Material | Steel |
Documents | |
Item number | 6809778 |
Manufacturer | Hettich |
Category | Drawer runners |
Manufacturer no. | 26578 |
Release date | 12.10.2017 |
Sales rank in Category Drawer runners | 47 of 3833 |
Colour | Silver |
Exact colour description | Steel |
Material group | Metal |
Material | Steel |
Surface finish | Galvanized |
Extension type | Over-extension |
Closing function | Undamped |
Max. load | 20 kg |
Extract path | 550 mm |
borehole diameter | 3.50 mm |
Country of origin | Germany, Spain |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 550 mm |
Width | 550 mm |
Height | 27 mm |
Length | 33 cm |
Width | 6 cm |
Height | 3 cm |
Weight | 714 g |
