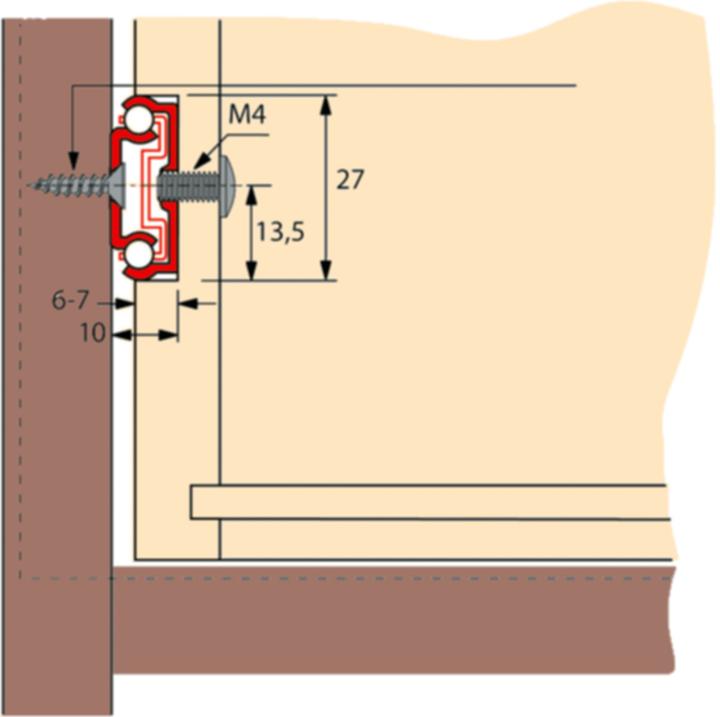

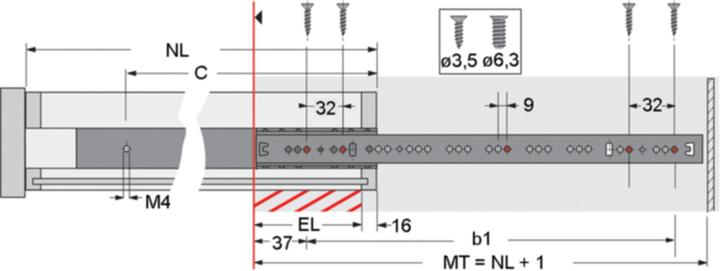

KA 270 ball bearing runner, groove mounting, dimensions (H x W) 27 x 10 mm, 230 - 350 mm. Partial extension with pull-out stop and roll-out protection. Cannot be separated. Precise control for smooth and free movement and high lateral stability. For drawers with grooved, rebated or flush drawer bottoms. Load capacity to EN 15338, level 1. Galvanised steel. Nominal length: 350 mm. Drawer length SL: 230 - 350 mm. Assembly side: left and right. Cabinet rail: 214 mm. Drawer design: 222 mm.
Extension type | Ball pull-out |
Max. load | 12 kg |
Items per sales unit | 2 Piece |
Length | 350 mm |
Exact colour description | Steel |
Material | Steel |
Documents | |
Item number | 6809774 |
Manufacturer | Hettich |
Category | Drawer runners |
Manufacturer no. | 25155 |
Release date | 12.10.2017 |
Sales rank in Category Drawer runners | 21 of 3833 |
Minimum order | 10 |
Colour | Silver |
Exact colour description | Steel |
Material group | Metal |
Material | Steel |
Surface finish | Galvanized |
Extension type | Ball pull-out |
Closing function | Undamped |
Max. load | 12 kg |
Extract path | 294 mm |
borehole diameter | 3.50 mm |
Country of origin | Germany, Spain |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 2 Piece |
Length | 350 mm |
Width | 10 mm |
Height | 27 mm |
Length | 22.30 cm |
Width | 3.50 cm |
Height | 2.20 cm |
Weight | 258 g |
