Hettich Connecting fitting

Connection fitting, 1 pcs.
2Ratings
BrandMore from Hettich
Delivered tomorrow
Only 3 pieces in stock
Free shipping starting at 50.–

Length4

Product details

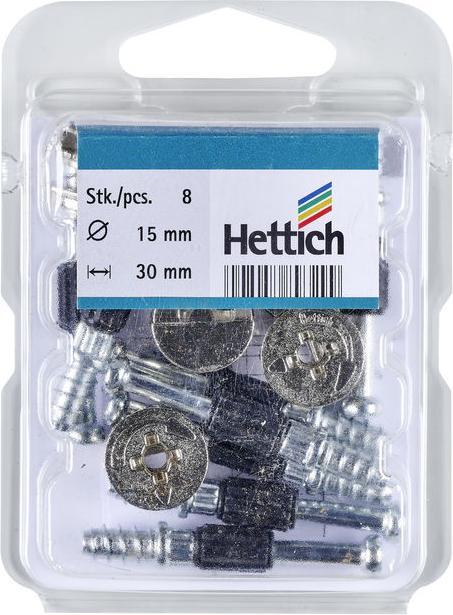

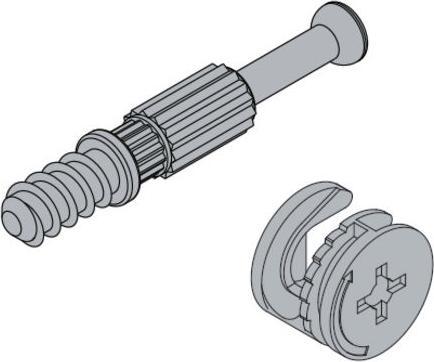

The Rastex connector fitting set consists of an eccentric, a screw-in or knock-in dowel, and a matching screw. It allows for a stable, concealed connection of furniture parts. Designed for force-fitting connections between shelves and side panels. The screw-in dowel is made of steel for a drill diameter of 5 mm.

Key specifications

Exact colour description
Galvanized
Material
Die-cast zinc
Area of use
Inside
Length
30 mm

General information

Item number
33611229
Manufacturer
Hettich
Category
Wood connectors
Release date
17.5.2023
Sales rank in Category Wood connectors
7 of 4149

Colour

Colour
Silver
Exact colour description
Galvanized

Material

Material group
Metal
Material
Die-cast zinc

Wood connector properties

Connector type
Connection fitting
Surface finish
Galvanized
borehole size
5 mm
Area of use
Inside

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
1.75 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
30 mm

Package dimensions

Length
9.30 cm
Width
7.10 cm
Height
2.30 cm
Weight
80 g
