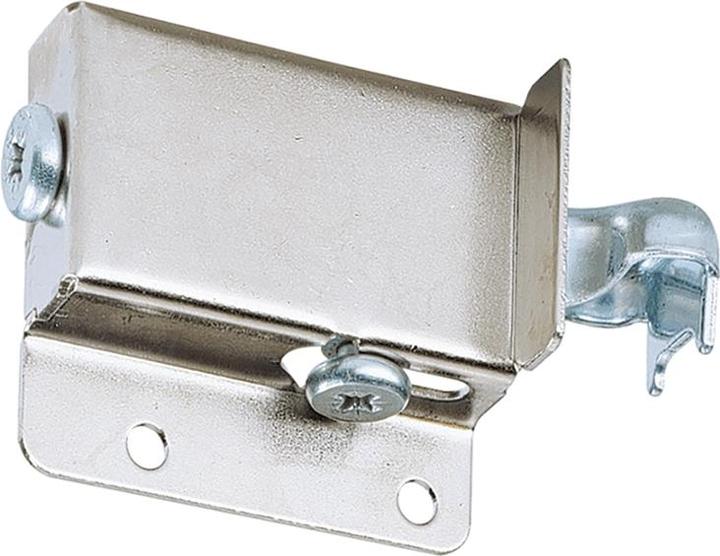

Hettich Cabinet hanger SAH 116

• For screw mounting
• Rail or hook suspension
• Secured against lateral slipping with hook suspension
• Load capacity of 40 kg per piece according to EN 15939 in test frame A
• 3-dimensional alignment: Height ± 7 mm / Depth max. 15 mm / Lateral with hook suspension ± 3 mm / Lateral with rail suspension ± 7 mm
• Back wall projection (to front edge of back wall) min. 16 mm
• Lift-out height 7.5 mm
• Usable with suspension rail type B, type A, and type L
• Nickel-plated steel

Notes for the load capacity of cabinet hangers and accessories:

• Both the furniture construction and the material and manufacturing quality of the furniture are beyond our control.
• We also have no influence on the nature of the wall materials.
• The hanging hooks we offer in conjunction with dowels are intended for use in solid bricks, aerated concrete blocks, concrete, or brick stones. A hole with a diameter of 8 mm must be drilled into the solid stone material, into which the plastic dowel is flush-driven. The minimum hook screw-in depth corresponds to the hook length minus 10 mm.
• For fastening to other wall materials, commercially available special fastening elements must be used.
• Dowels and screws must be compatible. Dowels screws must not be replaced with standard particle board screws.
• Fastening of suspension rails:
• with 2 special screws ø 5.5 x 50 mm in the area of each cabinet hanger
• for a cabinet width of 900 mm or more, an additional special screw ø 5.5 x 50 mm must be placed centrally behind each cabinet (type A, type B, and type H).
• Add-ons such as end shelves are not permitted without separate cabinet suspension.
• It is the responsibility of the furniture manufacturer/retailer to ensure that the furniture placed on the market complies with the requirements of EN 14749.
