Hensel Vending machine housing

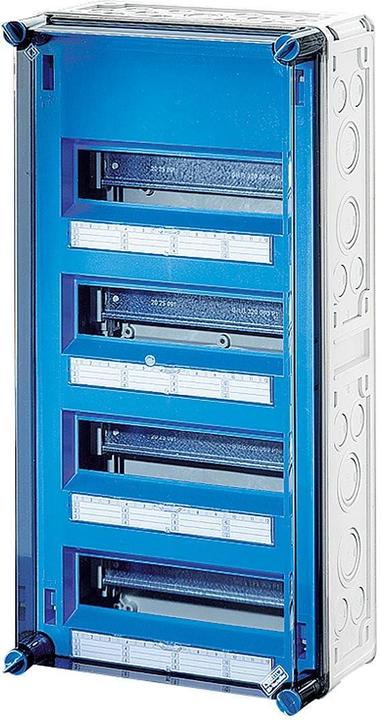

Hensel Automatic Enclosure Mi 1448

Manufacturer: Hensel
Designation: Automatic Enclosure
Dimensions: 600 x 300 x 170 mm
Type: Mi 1448
Mounting Type: Surface-mounted
Number of Rows: 4
Width in Division Units: 12
Type of Cover: Lid
Lid Design: Closed
Transparent Lid/Door: Yes
With Lock: No
Material of the Enclosure: Plastic
Installation Depth: 93 mm
Internal Depth: 146 mm
DIN Rail: Yes
With Mounting Plate: No
Mounting Option: Yes
EMC Version: No
Color: Gray
RAL Number: 7035
Protection Class (IP): IP65
Height: 600 mm
Width: 300 mm
Depth: 170 mm

The Hensel Automatic Enclosure Mi 1448 is designed for the construction of energy switchgear combinations up to 630 A or as a standalone enclosure. It is made from high-quality, protection-insulated polycarbonate. Wall penetrations are equipped with large openings for the electrical connection of the enclosures to each other. Cable entries are possible on all enclosure walls via metric pre-formed holes or mounting flanges. The enclosure can also be installed for wall mounting using external tabs or mounting rails.

The automatic enclosure provides 48 division units for the installation of modular devices according to DIN 43880. It features PE and N terminals for copper conductors, with N being separable for different potentials. Cover strips for sealing unused device cutouts as well as labeling strips for circuit identification are also included. The transparent lid has lid locks for manual operation.
