Hensel PV-GAK

Hensel PV-GAK with ÜSE Mi PV 1111

Manufacturer: Hensel
Designation: PV-GAK with ÜSE
1x PV-String on 1x WR Type: Mi PV 1111
Equipment: Other
Shape: Other
Mounting type: Wall/ceiling mounting
Entry from rear: No

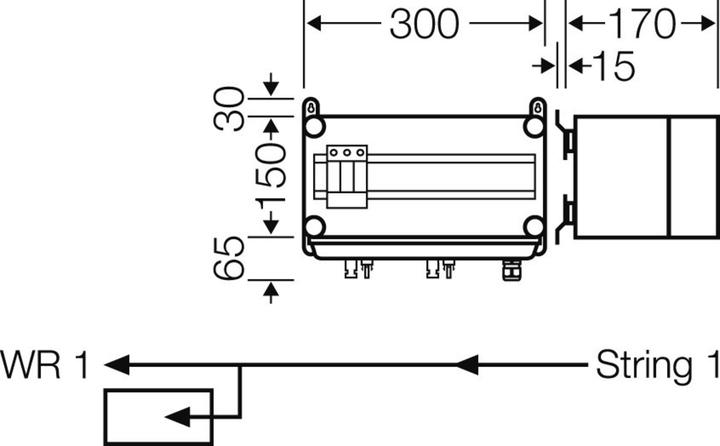

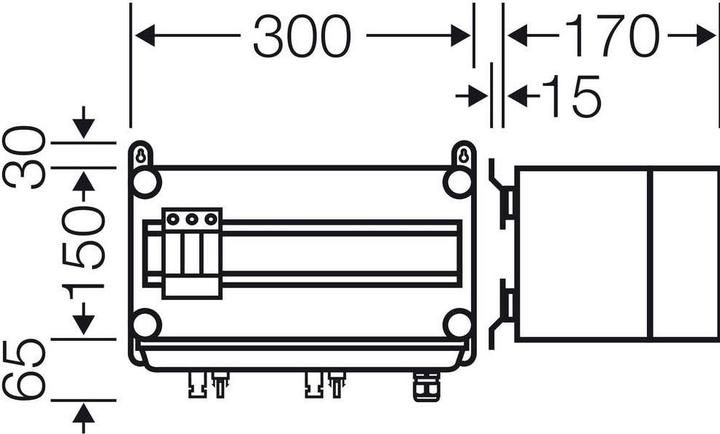

Length: 215 mm
Width: 300 mm
Depth: 170 mm
Bayable: No
Type of housing feed-through: Other
Material: Plastic
Halogen-free: Yes
Surface protection: Untreated
Color: Gray
Protection class (IP): IP65
Cover design: Other
Cover fixing: Screwed
Pourable: No
Supplied with potting compound: No
Sealable: No
Rated insulation voltage Ui: 1000 V
Functional integrity: None
With shielding: No
Weatherproof: Yes
Operating temperature: -5 to 40 °C
Explosion-proof version: No
For Ex-zone gas: Without
For Ex-zone dust: Without

Hensel PV-GAK with ÜSE Mi PV 1111: More details

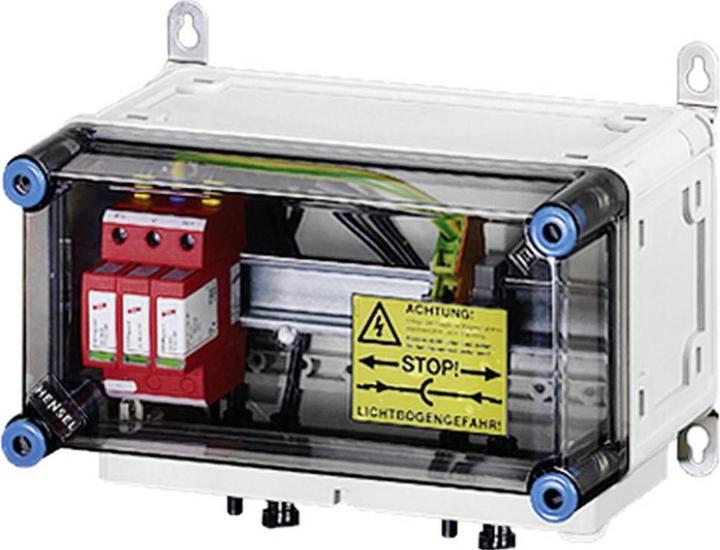

Generator junction box for PV systems up to 1000 V d.c. according to IEC 61439, completely assembled and wired ready for connection. The housings are made of high-quality thermoplastic and are insulated, protection class IP 65. PV generator junction boxes are equipped with surge arresters, generator disconnectors, and string fuses as required. They are suitable for protected outdoor installation and UV resistant. They are wall-mounted using stainless steel external brackets. PV generator junction box with DC surge arrester type 2. 1 x PV string to 1 x inverter input. The plug-in connections are compatible with MC4. Cover latches for tool actuation.
