Hensel DK 0102 W

Hensel Cable Junction Box DK 0102 W

Manufacturer: Hensel
Designation: Cable junction box 0.75-25 mm²
Type: DK 0102 W
Max. conductor cross-section: 2.5 mm²
Shape: square
Installation underground: no
Installation underwater: no
Rear entry: yes

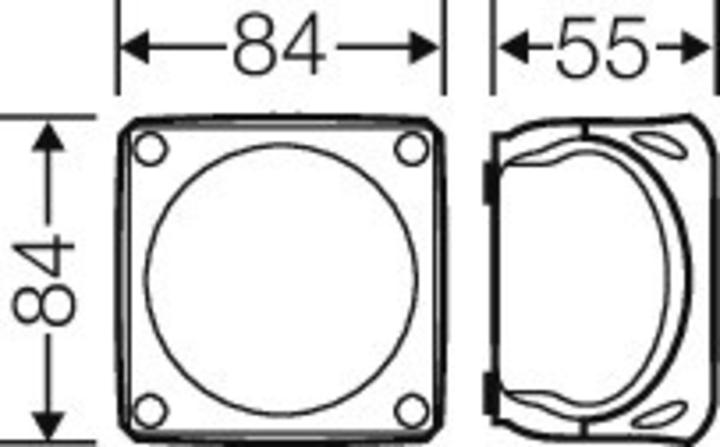

Length: 84 mm
Width: 84 mm
Depth: 55 mm
Stackable: no
Number of entries: 8
Type of housing entry: sealing membrane
Material: plastic
Halogen-free: yes
Surface protection: untreated
Color: gray
Protection class (IP): IP66
Cover type: blank cover
Transparent cover: no
Cover fastening: screwed
Pourable: no
Supplied with potting compound: no
Seal-able: yes
Rated insulation voltage Ui: 450 V
Function maintenance: none
With shielding: no
Weather resistant: no
Operating temperature: -25..40 °C
Explosion-proof version: no
For Ex-zone gas: none
For Ex-zone dust: none

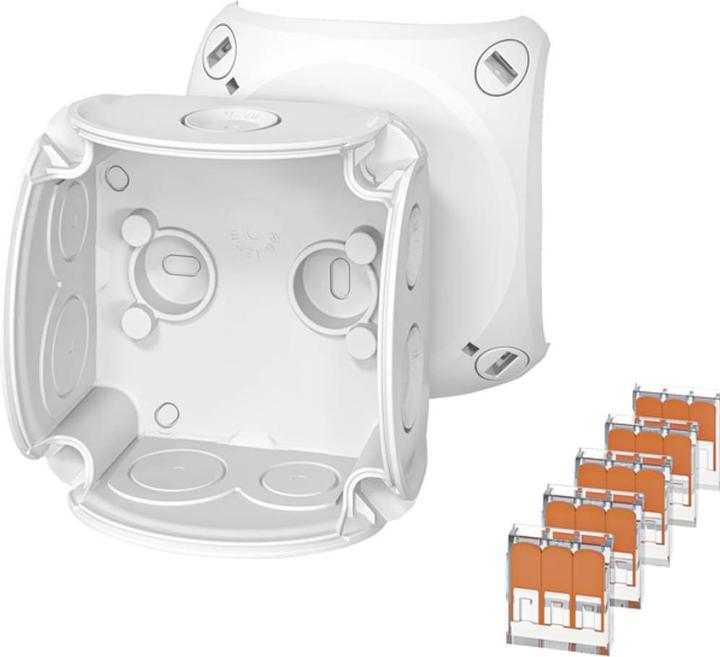

The cable junction box DK 0102 W is made of high-quality thermoplastic and is suitable for surface-mounted applications in buildings or for protected outdoor installation. It features external tabs for mounting and a cover fastening with quick locks. The box is equipped with a Wago compact connection terminal 221-413 and mounting adapters. Cable entry is facilitated through elastic sealing membranes in the housing walls and the base. Retrofitting with cable bushings is possible by removing the sealing membrane.
