Product details

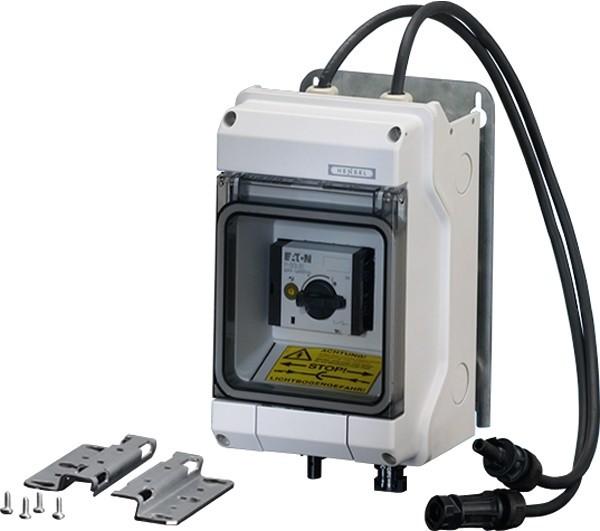

The DC generator disconnect switch from Hensel is a highly developed generator connection box specifically designed for photovoltaic systems up to 1000 V d.c. It complies with the IEC 61439-1 standard and comes fully assembled and pre-wired for easy connection. The housing is made of high-quality, protection-insulated thermoplastic and provides reliable protection against dust and water ingress with an IP 65 rating. The connection box is suitable for unprotected outdoor installation and is characterized by its UV resistance. It features a stainless steel mounting plate that allows for easy wall or pole installation. The DC generator disconnect switch enables efficient connection of PV strings to inverters and is compatible with MC4 plug connections. A hinged cover allows for manual operation, while a lock and a sealing kit are included in the accessories to ensure additional security.
- High-quality, protection-insulated thermoplastic housing
- IP 65 rating for optimal outdoor protection
- Compatible with MC4 plug connections for easy integration
- Stainless steel mounting plate for wall and pole installation
- Includes lock and sealing kit for additional security.
Protection type (IP code) | IP65 |

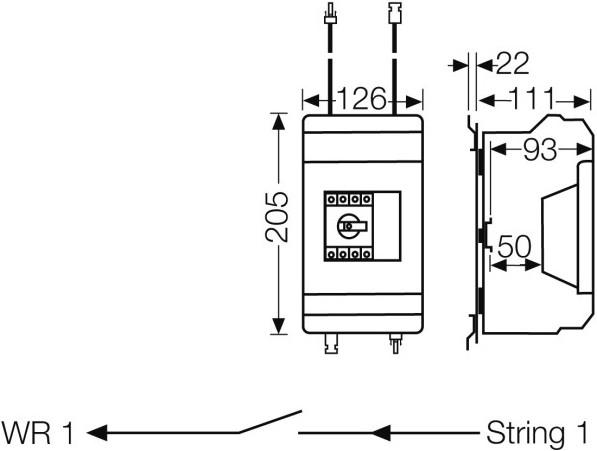

Width | 126 mm |
Length | 205 mm |
Item number | 22504363 |
Manufacturer | Hensel |
Category | Junction box |
Manufacturer no. | 11521000 |
Release date | 28.9.2022 |
Colour | Grey |
Exact colour description | Grey |
Material group | Plastic |
Material | Plastic |
mounting style | Adhesive, Duvet |
Area of use | Outside |
Protection type (IP code) | IP65 |
Country of origin | Germany |
CO₂ emissions | 0.87 kg |
Climate contribution | CHF 0.11 |
Width | 126 mm |
Length | 205 mm |
