Hensel Cable junction box

Ratings
Delivered between Thu, 9.4. and Fri, 10.4.
Only 1 piece in stock at third-party supplier
Supplied by
free shipping

Product details

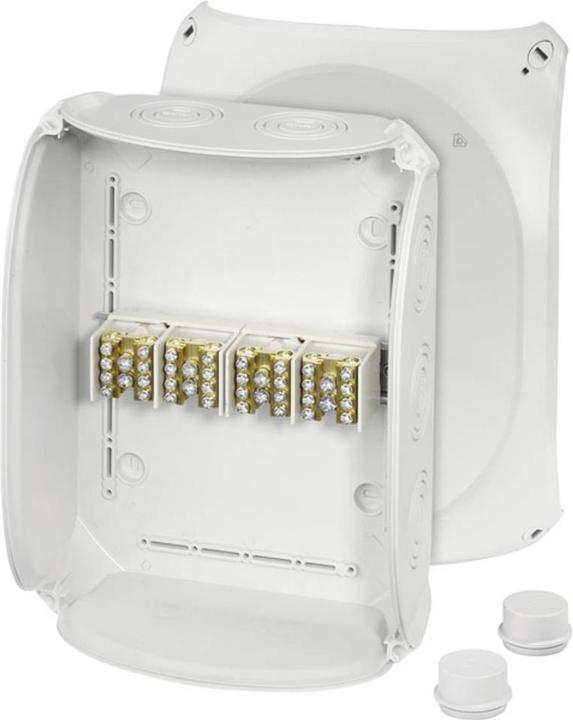

Hensel Cable Junction Box DK 3534 S

Manufacturer: Hensel
Designation: Cable junction box 25/35 mm² 3-phase
Type: DK 3534 S
Max. conductor cross-section: 35 mm²
Equipment: Screw terminal
Shape: Rectangular
Mounting type: Wall/Ceiling mounting
For pipe diameter: Other
Rear entry: Yes
Length: 295 mm
Width: 225 mm
Depth: 122 mm
Stackable: No
Number of entries: 10
Type of housing entry: Pre-formed
Material: Plastic
Halogen-free: Yes
Surface protection: Untreated
Color: Gray
Protection class (IP): IP66
Cover design: Other
Cover fastening: Screwed
Pourable: No
With casting compound included: No
Seal-able: Yes
Rated insulation voltage Ui: 400 V
Function maintenance: None
With shielding: No
Weather-resistant: No
Operating temperature: -25..40 °C
Explosion-proof version: No
For Ex zone gas: None
For Ex zone dust: None

Hensel Cable Junction Box DK 3534 S: additional details
Cable junction box made of high-quality thermoplastic with main line branching terminals for copper conductors. Suitable for surface-mounted applications in buildings or protected outdoor installations. Equipped with external tabs for fastening and cover fastening via quick closures. With main line branching terminals up to 35 mm², 4-pole. Cable entry through metric pre-formed entries in the housing walls and base. Included plug-in bushings with protection class IP 55.
EAN: 4012591125600.

Key specifications

Junction box type
Connector socket
Protection type (IP code)
IP66
Height
122 mm
Width
225 mm
Length
295 mm

General information

Item number
17941515
Manufacturer
Hensel
Category
Junction box
Manufacturer no.
62000169
Release date
16.12.2021

Colour

Colour
Grey

Material

Material group
Plastic
Material
Plastic

Junction Box Features

Junction box type
Connector socket
mounting style
Adhesive, Duvet
Area of use
Inside

Safety

Protection type (IP code)
IP66

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
0.87 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Height
122 mm
Width
225 mm
Length
295 mm

30-day right of return
24 Months Warranty (Bring-in)
