Product details

Hensel junction box DK 0604 G
Manufacturer: Hensel
Designation: Junction box 1.5-4 qmm
Type: DK 0604 G
Max. conductor cross-section: 6 mm²
Equipment: Terminal
Shape: Square
Mounting type: Wall/ceiling mounting
For pipe diameter: Other
Entry from rear: Yes
Length: 130 mm
Width: 130 mm
Depth: 77 mm
Bayable: No
Number of entries: 8
Type of housing feed-through: Other
Material: Plastic
Halogen-free: Yes
Surface protection: Untreated
Color: Gray
Protection class (IP): IP66
Cover design: Other
Cover fixing: Screwed
Pourable: No
Supplied with potting compound: No
Sealable: Yes
Rated insulation voltage Ui: 690 V
Functional integrity: None
With shielding: No
Weatherproof: No
Operating temperature: -25 to 40 °C
Explosion-proof version: No
For Ex-zone gas: Without
For Ex-zone dust: Without

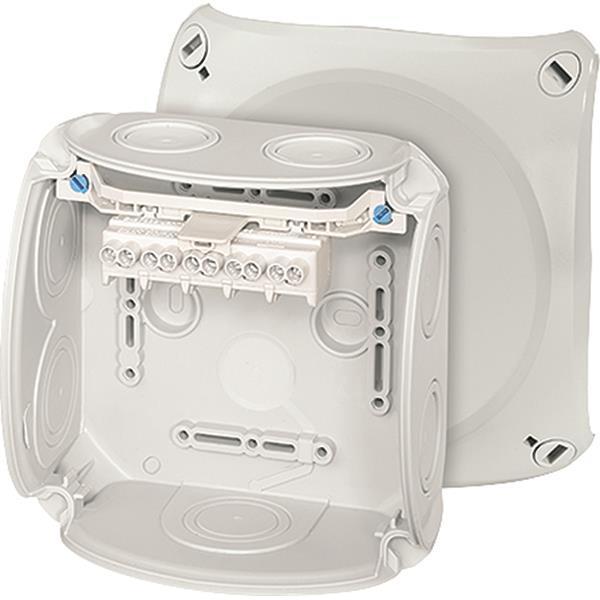

Junction box made of high-quality thermoplastic. For surface-mounted applications in buildings or protected installation outdoors. With external lugs for fastening and lid fastening via quick-release fasteners. With innovative terminal technology up to 4 mm², 5-pole. Cable entry via elastic sealing membranes in housing walls and base. Subsequent use of cable glands possible by removing the sealing membrane. With cover retaining strap.
EAN: 4012591124986.

Key specifications

Protection type (IP code)
IP66
Junction box type
Junction box
Width
130 mm
Length
130 mm
Height
14 mm

General information

Item number
17941501
Manufacturer
Hensel
Category
Junction box
Manufacturer no.
62000006
Release date
16.12.2021
External links
Manufacturer's site (de)
Minimum order
2

Colour

Colour
Grey
Exact colour description
Grey

Material

Material group
Plastic
Material
Plastic

Junction Box Features

Junction box type
Junction box
mounting style
Adhesive, Duvet
Area of use
Inside

Safety

Protection type (IP code)
IP66

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
5 pcs.

Product dimensions

Height
14 mm
Width
130 mm
Length
130 mm
