Hensel Cable junction box

Ratings
Delivered between Wed, 8.4. and Thu, 9.4.
Only 2 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

Hensel Cable Junction Box K 1205

Manufacturer: Hensel
Designation: Cable junction box 16-150 mm² 3ph. 5p
Type: K 1205
Max. conductor cross-section: 150 mm²
Fitting: Screw terminal
Shape: Rectangular
Mounting type: Wall/Ceiling mounting
For pipe diameter: Other
Rear entry: No

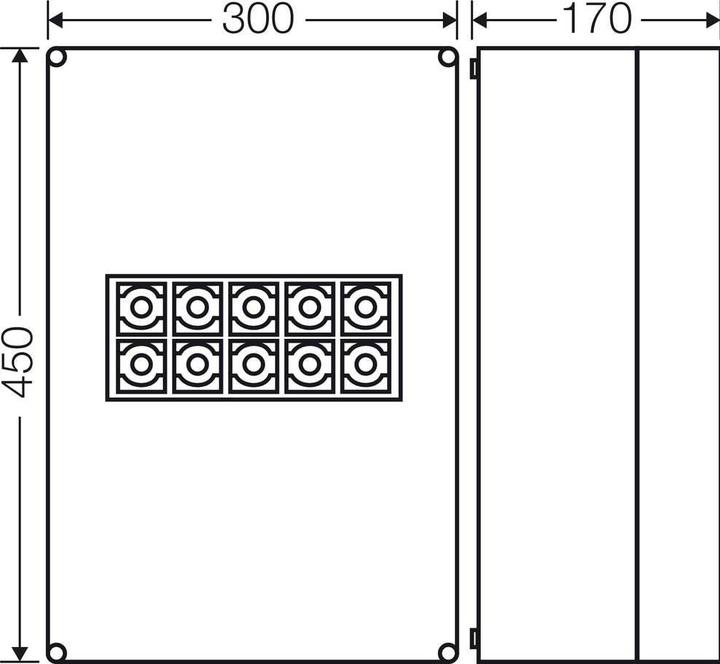

Length: 450 mm
Width: 300 mm
Depth: 170 mm
Stackable: No
Type of enclosure penetration: Pre-formed
Material: Plastic
Halogen-free: Yes
Surface protection: Untreated
Color: Gray
Protection class (IP): IP65
Cover design: Other
Cover fastening: Screwed
Pourable: No
With casting compound supplied: No
Seal-able: Yes
Rated insulation voltage Ui: 690 V
Function maintenance: None
With shielding: No
Weather-resistant: No
Operating temperature: -25..40 °C
Explosion-tested version: No
For Ex-zone gas: None
For Ex-zone dust: None

Hensel Cable Junction Box K 1205: Additional details
Cable junction box made of high-quality thermoplastic with terminals for aluminum and copper conductors. Suitable for surface-mounted applications in buildings or for protected outdoor installation. Cable entries and mounting flanges are included in the accessories. With terminals up to 150 mm², 5-pole. Conductors can be inserted from the front into the terminal.

Key specifications

Junction box type
Junction box
Protection type (IP code)
IP65
Height
450 mm
Width
300 mm
Length
170 mm

General information

Item number
17941453
Manufacturer
Hensel
Category
Junction box
Manufacturer no.
3900222
Release date
16.12.2021
External links
Manufacturer's site (de)

Colour

Colour
Grey
Exact colour description
Light grey (RAL 7035)

Material

Material group
Plastic
Material
PC

Junction Box Features

Junction box type
Junction box
mounting style
Adhesive, Duvet
Area of use
Inside

Safety

Protection type (IP code)
IP65

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
0.87 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Height
450 mm
Width
300 mm
Length
170 mm
Diameter
170 mm
