HellermannTyton HELLERMANN 151-01482

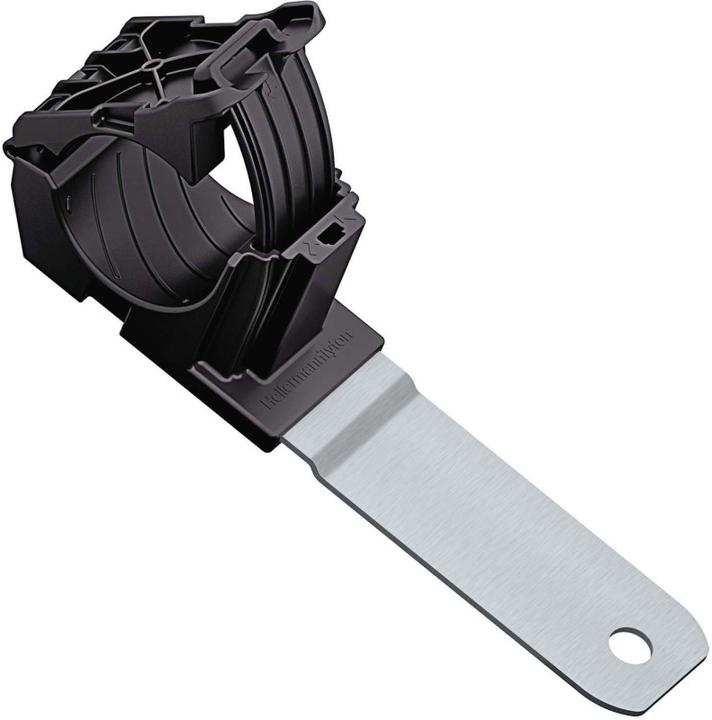

HellermannTyton fastening element RCC180LM12 PA66 BK

Manufacturer: HellermannTyton

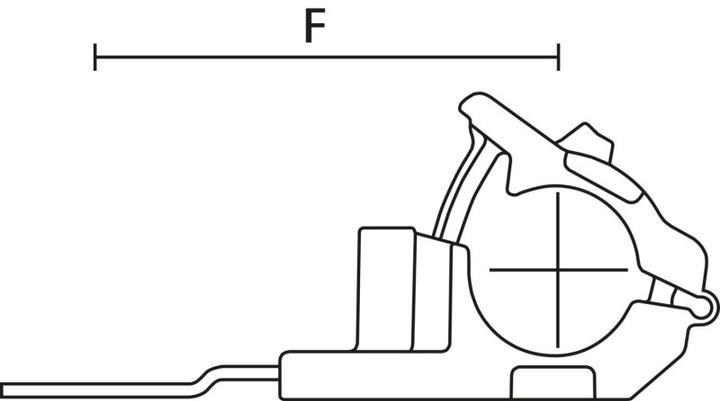

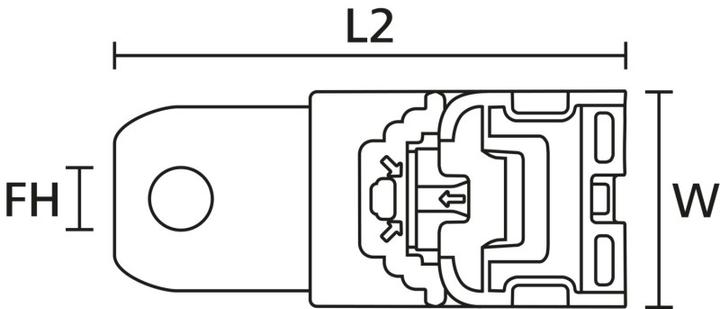

Description: Fastening element measuring 207.1 x 34.9 mm, M12.

Diameter: 19.4 to 36 mm.

With distance to wall: Yes.

Version: Closed.

Type of fastening: Screw hole.

Material: Plastic.

Material grade: Polyamide (PA).

Surface protection: Untreated.

Halogen-free: Yes.

UV-resistant: Yes.

Suitable for fire protection: No.

Plastic-coated: No.

Colour: Black.

Further details: Suitable for bundle diameters from 19.4 mm up to 36.0 mm. The one-piece ratchet fastener allows easy installation during pre- and final assembly. Multiple configuration options cover a wide range of diameters and applications, helping to reduce stock. The clamp mount guides and centers the bundle, avoiding crushing. It features an uncomplicated release function for quick adjustment and simplified maintenance. The impact-resistant, heat- and pressure-resistant ratchet lock is impact modified and heat and UV stabilized PA66, ensuring long indoor and outdoor durability. The integrated steel mounting plate tolerates high torque mounting and is chemical and salt spray resistant. Special inserts of soft material are available for sensitive bundles. A separate tightening aid enables defined contact pressure with the aid of a hand tool (EVO series). The Ratchet P-Clamp product family offers a high degree of flexibility for guiding and fastening cables, pipes, or wires. Their robust design and resistant materials make them ideally suited for heavy-duty applications indoors and outdoors. The one-piece fixing clamp is closed by hand to the desired diameter, and with the release function, the bundle can be removed easily and non-destructively using a simple slotted screwdriver. The clamp can be reused without changing the position.

EAN: 4031026543147.
