Helios Tube fan

Helios Fans Duct Fan SB 200 C

Manufacturer: Helios Fans
Designation: Duct Fan 1 PH Soundproofed
Type: SB 200 C
Housing Material: Steel, treated
Airflow Unloaded: 910 m³/h
Connection Voltage: 230 V
Power Consumption: 0.105 kW
With Thermal Protection: Yes
DC Motor: No
Indirect Drive: No
Electrical Connection: Terminal Blocks
Protection Class (IP): IP44
Max. Air Temperature: 70 °C
Motor with 2 Speeds: No
Suitable for Electronic Control: Yes
Suitable for Frequency Control: No
Suitable for Low Voltage Control: No
Suitable for Transformer Control: Yes
Polarity Switchable: No
Length: 616 mm
Duct Diameter: 200 mm
Connection: Insertion End

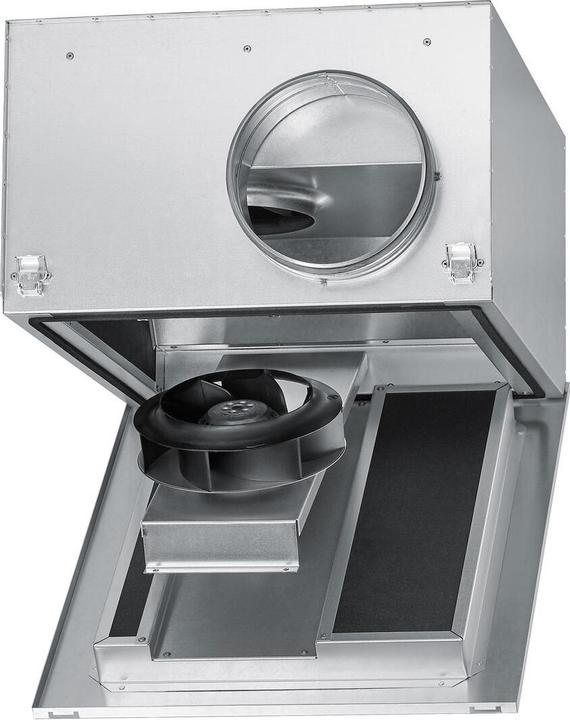

Additional Details: Radial duct fan with soundproof housing. Sound-insulating housing made of galvanized steel sheet with round connection nozzles adapted to standard pipes. Sound-absorbing perforated sheet metal lining, backed with 50 mm thick mineral fiber board. Removable cover. Fan chamber easily accessible. Motor and impeller can be pivoted. High-performance radial impeller with backward-curved blades made of plastic. Vibration-free operation due to dynamic balancing according to quality class G 6.3 VDI 2060 and DIN ISO 1940. Single-phase AC external rotor motor, closed design, maintenance-free, speed controllable by voltage reduction, built-in thermal contacts, sealed, low-noise ball bearings with long-term lubrication.
