HAZET Torque wrench 6170-1CT ∙ Nm min-max: 800 - 2000 Nm ∙ Tolerance: 4% ∙ Square, solid 25 mm (1 i…

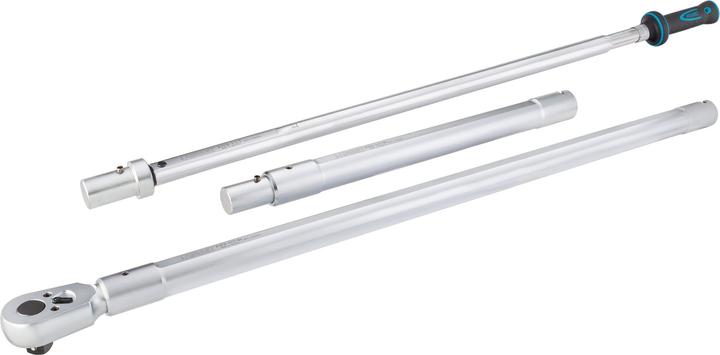

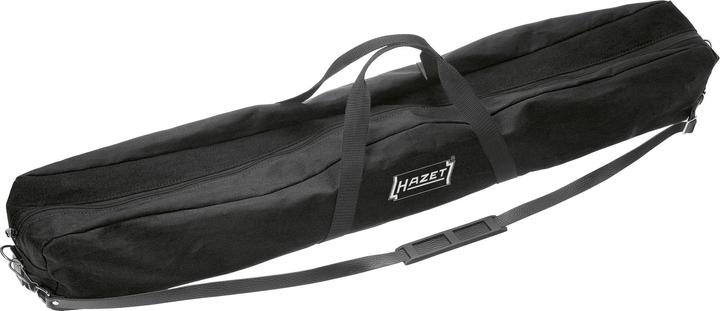

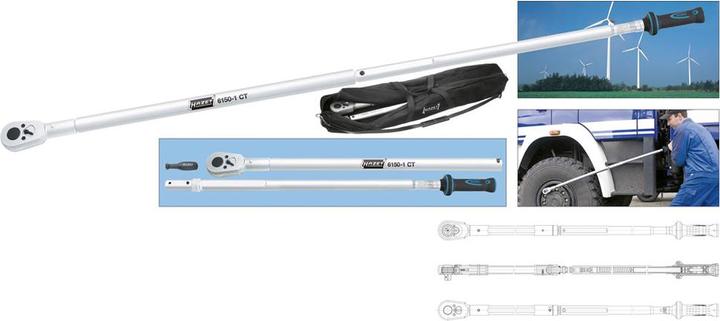

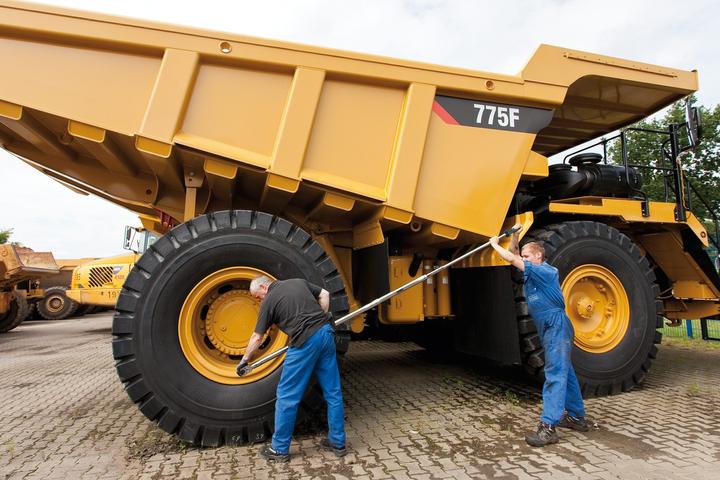

For highest torque values of 2000 Nm, this torque wrench weighs only about 18 kg. The actuating force is only 685 N (70 kg) at 2000 Nm. The length of the ratchet shaft is 1316.5 mm, the middle piece is 644 mm, and the handle is 1203 mm. Calibration is according to company standards, making it suitable for industrial climbers. It can be used on wind turbines, dockyards, in the aviation industry, heavy industry, and on commercial vehicles. The wrench can be disassembled into two parts (6170-1CT: three parts) with a release tool and comes in a carrier bag with a carrying handle and shoulder strap. It has an accuracy of ± 4% of the scale value (in the direction of actuation). Fast screw tightening is also possible with the ratchet shaft.

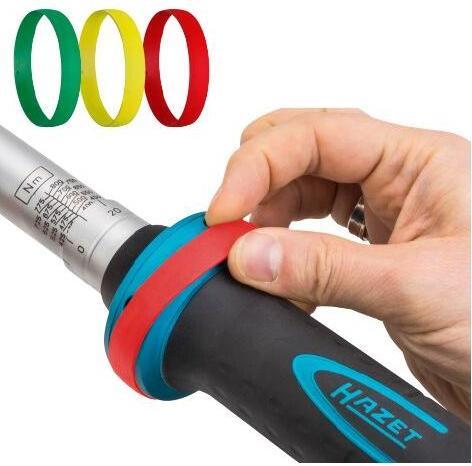

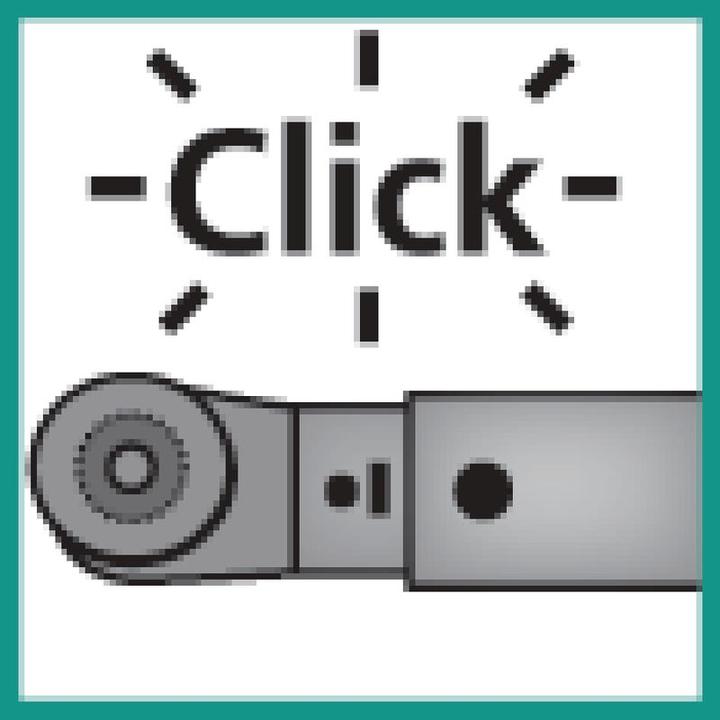

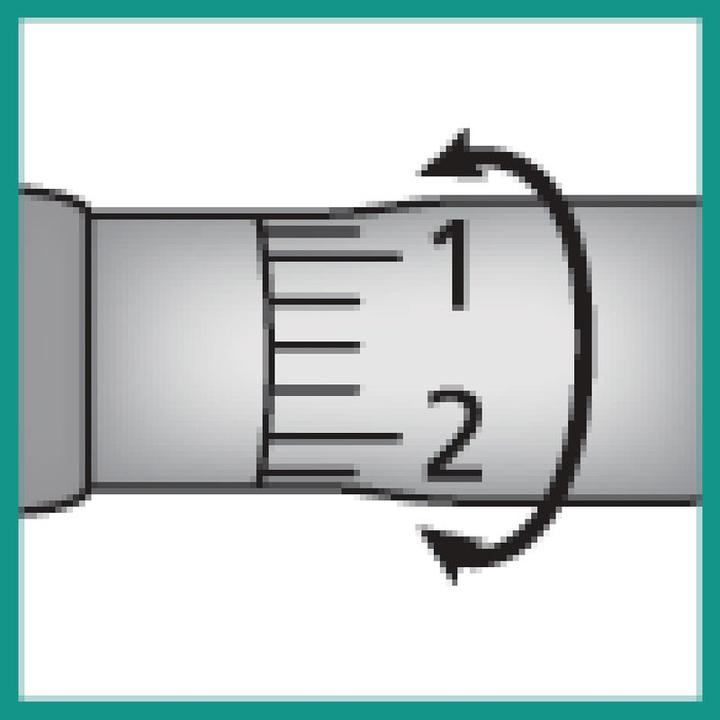

For torque tightening, always use the complete wrench. Safety features include haptic (close-gap release), audible (click sound), and visual (models with signal transmitter) indicators. The 2-component handle improves the feel, and there is a simplified locking mechanism for adjusting the torque value. A viewing window allows for visual checking of the locking, and there are four colored coding rings (red, yellow, green, black) for markings in case of personalization or special workflows. It comes with a calibration certificate and serial number, complying with DIN EN ISO 6789-2:2017, DIN 3120, ISO 1174-1.

Made in Germany, the output is a square, solid 25 mm (1 inch). The dimensions/length are 3033 mm, and the net weight is 18 kg. The torque range is 800–2000 Nm with a tolerance of 4%. The scale graduation is 6 Nm, and the actuating force ranges from 27.9 to 70.1 kg. The number of teeth is 32 with an opening angle of 11.25°. The head thickness is 36 mm, and the head width is 77 mm. Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required.
