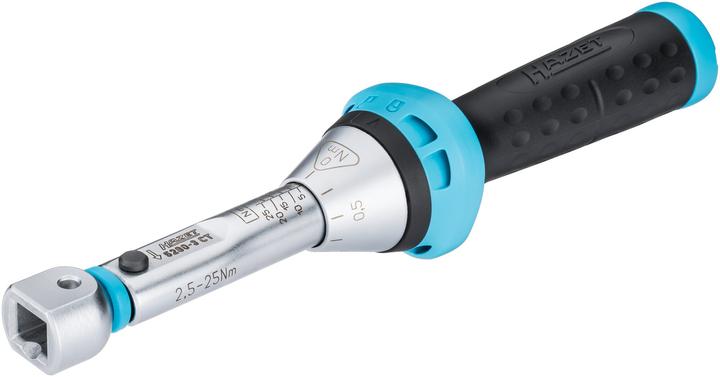

HAZET Torque wrench 5280-3CTCAL ∙ Nm min-max: 2.5 – 25 Nm ∙ Tolerance: 3% ∙ Insert square 9 x 12 mm…

Plug-and-socket connection to hold insert tools. Torque wrench with DAkkS calibration certificate. Accuracy ± 3% of the scale value (in direction of actuation). Can be used for right-hand and left-hand threads by turning the insert tool. Safety features include haptic (close-gap release) and audible ("click" sound). Designed for rough workshop use. Wide range of applications for controlled screw tightening in tyre service, bicycle, passenger car, and commercial vehicle applications, as well as various applications in trade and industry. Optimised sealing ring to protect against debris. Handle with better grip for easier power transmission. Adjustment aid with detent points for optimised operator guidance ensures safe and fast adjustment of the desired torque value by turning the handle. Safe locking of the setting values by latching function on the rotary assembly. Rotary assembly in triangular form prevents uncontrolled rolling. Lock symbols indicate the respective locking status. Can be attached to the cable loop through openings on the locking rotary assembly. Easy-to-read, high-contrast scale. Permanent readability due to laser marking on the scale bush. Delivered in a sturdy Hexa plastic box. Complies with DIN EN ISO 6789-2:2017. Made in Germany.

Output: Insert square 9 x 12 mm. Dimensions / length: 218 mm. Nm min-max: 2.5 – 25 Nm. Tolerance: 3%. Scale graduation (Nm): 0.25 Nm. Effective torque wrench length min-max I1 mm: 178.80 – 191.50 Nm. Actuating force min-max kg: 1.3 – 14.3 kg. Inside micrometre of the adjusting tool l2: 19.5 mm. Head thickness a: 17 mm. Head width b: 22 mm. No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required.
