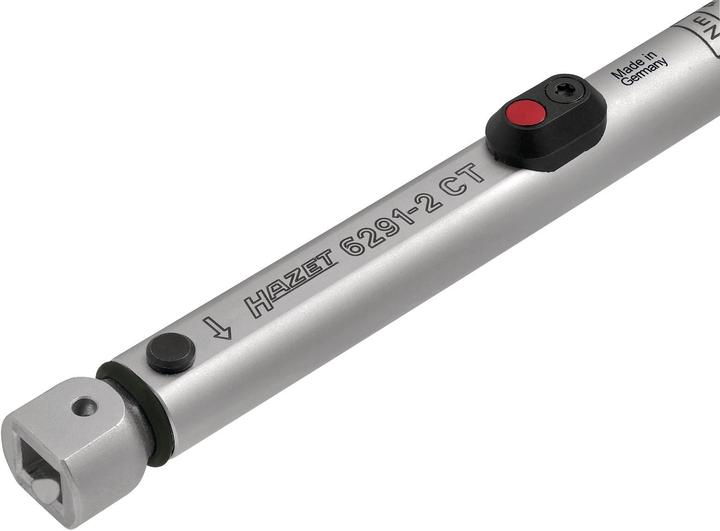

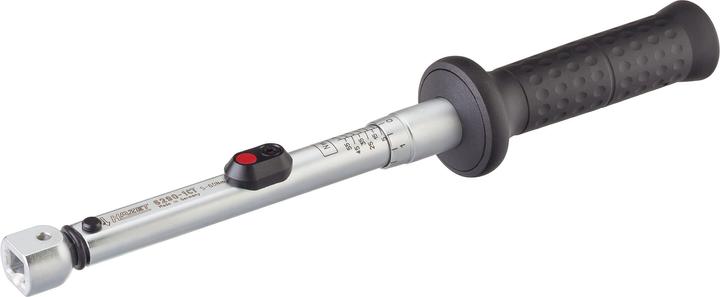

HAZET Torque spanner

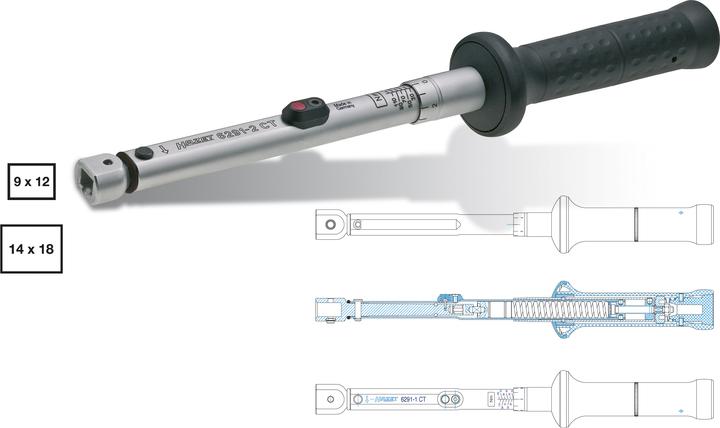

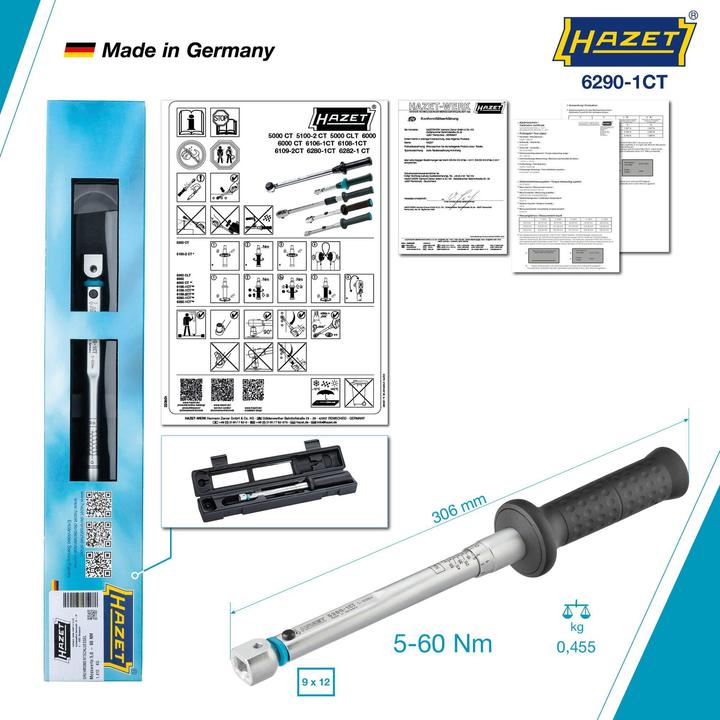

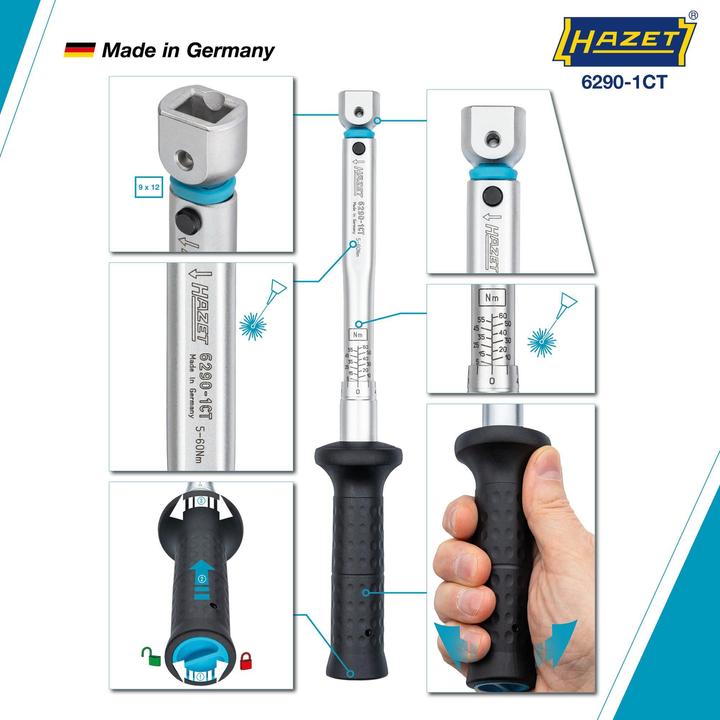

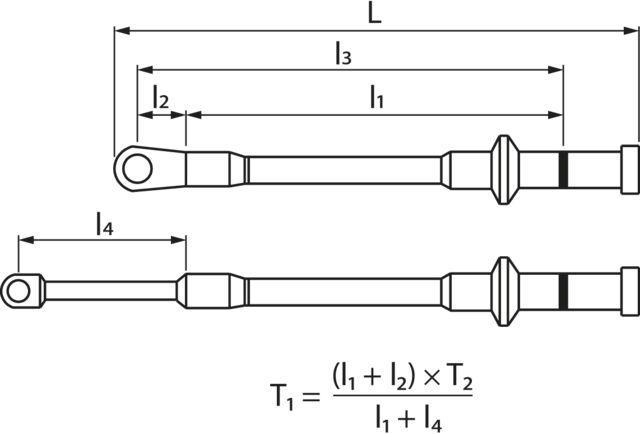

Plug connection for the reception of insert tools. Accuracy ± 2% of the scale value (in the direction of operation). Usable for right and left threads by rotating the insert tool. Safe: tactile (short-term release) and acoustic (bending element). Comes with a calibration certificate and serial number. Quickly and securely set the desired torque value by turning the handle. Secure storage in a safe box with a viewing window. DIN EN ISO 6789-2:2017. Made in Germany. Output: 9 x 12 mm hollow insert square. Dimensions: 306 mm. Net weight: 0.46 kg. For manual operation. Torque range min-max: 5 – 60 Nm. Accuracy: 2%. Scale division (Nm): 0.5 Nm. Effective length of the torque wrench min-max l1 mm: 281.52 – 265.02 Nm. Operating force min-max kg: 1.8 – 23.1 kg. Adjustment tool length l2: 30 mm. Head thickness a: 17 mm. Head width b: 22 mm. No more back-turning: Long-term durability tests have proven that back-turning to the smallest scale value is unnecessary for HAZET torque wrenches in the 5000 and 6000 series. SYSTEM 6200-1 CT insert torque wrench ∙ 2 – 500 Nm ∙ with insert square ∙ Accuracy ± 2 / 4%.
