HAWA Frontino 40 sliding-door fittings, Forslide, flush with front

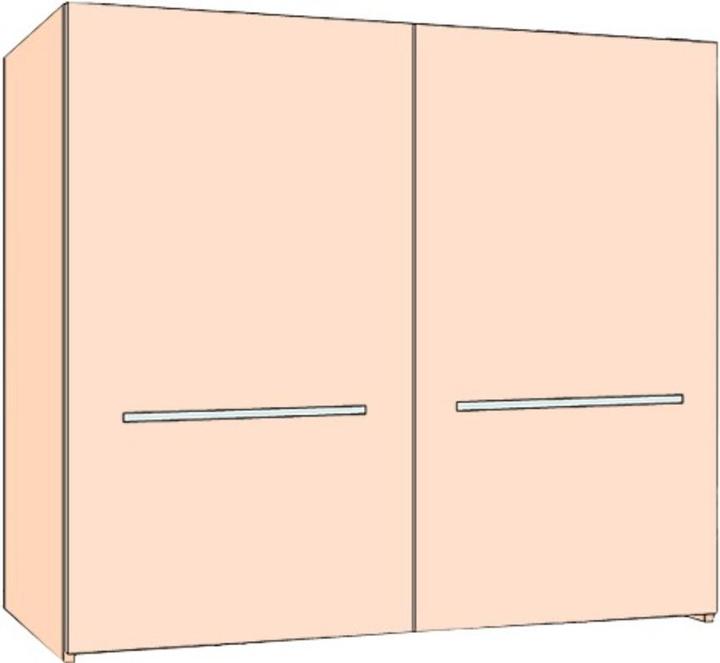

Top-running, 2-panel sliding door hardware for flush sliding doors with custom cabinet widths, element width from 1200 - 2400 mm, flush design, suitable for cabinets with raised side panels.

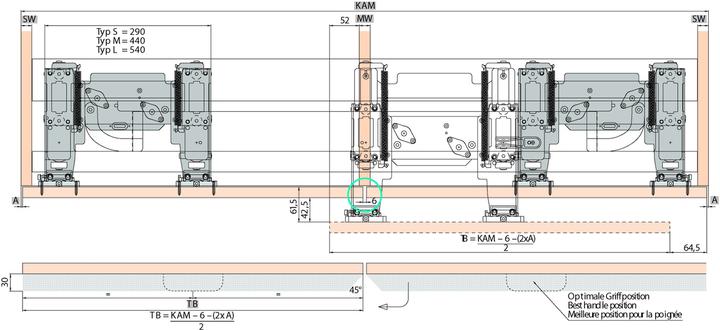

The use of standard rail sets allows this hardware to be adapted for individual cabinet widths and door heights by simply cutting the rail sets. The sliding doors close flush. The door opening is facilitated by furniture handles arranged freely, which are mounted on the door panels: door thickness 19 mm, max. height of furniture handles/cup handles 30 mm. Handle distance from the side edge at the door center joint at a 45° angle to the height of the installed handle, suitable for wooden doors with symmetrical door division, door center joint at least 4 mm, damping in both opening and closing directions, with pull-in mechanism in the closing direction, retaining spring in the open position, door inset 52 mm, doors adjustable vertically and horizontally +/- 5 mm. Minimum installation height cabinet - ceiling 80 mm.

Complete set for wood including running and guiding rails. Running and guiding rail, can be cut to size, to be screwed on, top-running, no cabinet processing required, for two wooden doors up to a maximum of 40 kg.
