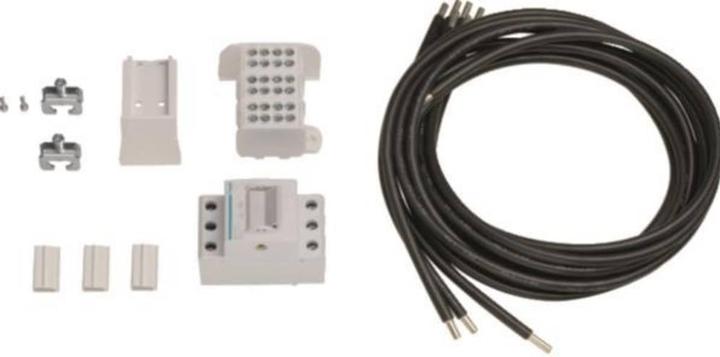

Hager ZY12PV Assembly kit,universal Z,16mm²,for 1ZP

Universal Assembly Package Z, 16 mm², PV surplus, ZTP 750 mm up to 44 A continuous current. Meter cabinet solution with cabinet housing according to DIN VDE 0603/1, dimensional standard DIN 43 870 for surface-mounted, flush-mounted, or partially recessed installation. Comprising a cabinet with a door made of powder-coated, baked-on, sturdy profiled 1 mm thick steel sheet. Interior lining completely made of plastic. Cable entries at the top and bottom through built-in plastic flange plates. Pre-formed back in the plastic part. Busbar entries as dual-sided, lateral, tool-free opening flanges in the lower area as an option for busbar connections between different cabinets or in conjunction with a cable connection box and connection set. In addition to the entry in the NAR, there are also openings in the area of the AAR (for construction heights of 1100 and 1400 mm) and RfZ (for construction height of 1100 mm). Door flush with the front with internal adjustable hinges, optionally hinged on the right or left with a 110° opening angle. Door lock with pre-locking mechanism. Door lock interchangeable with other locks. Cabinets can be flanged side by side and stacked on top of each other. Cabinet size from 1 to 5 fields with 72 to 540 space units (PLE). Note: The main line must be introduced from below or the side into the lower connection area of the meter cabinet and connected there according to VDE-AR-N 4100:2019-04. Height: 1100 mm or 1400 mm, Width: __ mm, Depth: 205 / 160 mm, RAL color: 9010, Protection class 44, Protection class II, Rated current of the busbar system 250 A, Execution according to VDE-AR-N 4100:2019-04, Meter installation for __ meter space(s). According to the technical connection conditions (TAB) of the VNB __ for: __ Electronic household meters (eHZ) or __ meters with 3-point fastening (3HZ). __ for supply systems with typical household consumption max. 63 A (10 mm²) according to DIN 18015-1 ( __ apartments, __ general, __ reserve, __ heat pump) __ for continuous current applications max. 32 A (10 mm²) according to VDE-AR-N 4100:2019-04.
