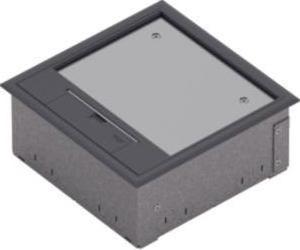

Hager UDKQ067011

Ratings
BrandMore from Hager
Currently out of stock
Free shipping starting at 50.–

Product details

Tehalit Z-Element. Vertical 90°. UDKQ067011
Manufacturer: Tehalit
Description: Z-Element. Vertical 90°
Type: UDKQ067011
Cover design: Other
Number of entries: 28
Number of device sockets: 2
Number of SCHUKO sockets: 3
With cable outlet in the cover: Yes
Housing material: Plastic
Surface protection of the housing: Other
Cover material: Plastic
Load on the cover: 3 kN
Protection class (IP): IP20
With flooring cutout: Yes
Depth of flooring cutout: 5 mm
Floor covering protection frame: Yes
Color: Grey RAL 7011
Suitable for indoor use: Yes
Suitable for outdoor use: No
Suitable for underfloor ducts: Yes
Suitable for hollow floor installation: Yes
Suitable for raised floor installation: Yes
Suitable for wet cleaning: No
Width external dimension: 219 mm
Length external dimension: 219 mm
Length installation dimension: 200 mm
Width installation dimension: 200 mm
Min. installation depth: 95 mm
Tehalit installation depth: 95 mm

Tehalit Z-Element. Vertical 90° UDKQ067011: Additional details
UD-ZuHause floor socket set with equipped supply unit Q06. Cover T=5 mm RAL 7011.
UD-ZuHause floor socket set, square, consisting of a floor socket made of sheet steel, mounting protection plate, mounting cover, supply unit Q06 for 5 mm cover RAL 7011, device carrier for 3 devices 45 x 45 mm, device support for 2 mounting plates data technology, socket 3-fold 33° 16A/250V 45 x 45 mm, 2 x mounting plate 2 x RJ45 19.3 x 14.8 mm.
Can be used for all floor structures in dry rooms with dry-cleaned floors. With pre-formed entry openings on the side walls and at the bottom for empty conduits (16 x M20 12 x M25). Can be mounted on height extension of size Q06.
Tested according to DIN EN 50085-1 and DIN EN 50085-2-2.

Key specifications

Junction box type
Connector socket
Protection type (IP code)
IP20
Width
219 mm
Length
219 mm

General information

Item number
33781622
Manufacturer
Hager
Category
Junction box
Manufacturer no.
UDKQ067011
Release date
17.5.2023

Colour

Colour
Grey
Exact colour description
RAL7011

Material

Material group
Plastic
Material
Plastic

Junction Box Features

Junction box type
Connector socket
Area of use
Inside

Safety

Protection type (IP code)
IP20

Origin

Country of origin
Germany

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Width
219 mm
Length
219 mm
