Hager TYA624D

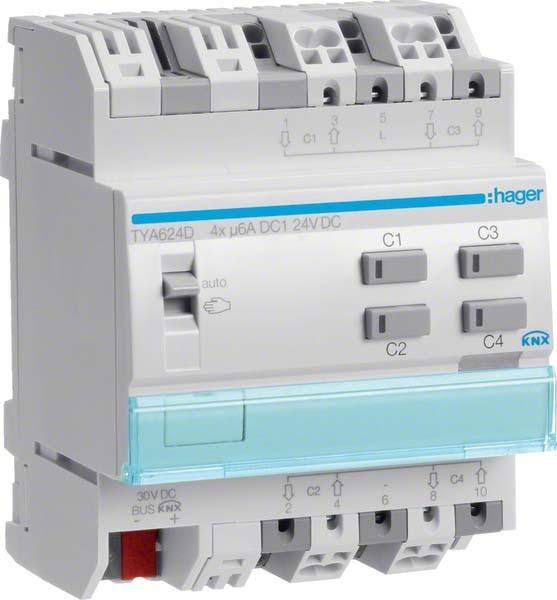

Hager KNX Shutter Output 4-fold TYA624D

Manufacturer: Hager
Designation: KNX Shutter Output 4-fold 24V
Type: TYA624D
KNX Bus System: yes
KNX Radio System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Radio: no
Mounting Type: REG
Width in Division Units: 4
With Bus Coupling: yes
Bus Module Removable: no
Local/Manual Control: yes
With LED Display: yes
Switching Current Resistive: 6 A
Max. Switching Power: 144 W
Max. Number of Shutter Outputs: 4
Switching Function: no
Type of Current: DC
Protection Class (IP): IP20

Hager KNX Shutter Output 4-fold TYA624D: further details
4-fold shutter actuator, 6A / 24V DC, KNX. Switching output for controlling 4 shutter outputs. The shutter function allows for UP/DOWN/Stop commands and adjustment of the slat angle. Percentage control of the shutter to move to a predefined position. Alarm function to control the shutter to a defined position. Safety descent as long as the button is pressed. 64 scene functions per channel. Logic block for controlling the output based on the result of a logical connection. Preset, lock function, forced control. The device converts bus information into corresponding commands. The outputs are switched via the system line from their assigned inputs. All outputs have manual control at the device, which can also be locked, as well as a switching status display via LED and operating hour counter per output. The device can be read with a diagnostic tool. Labeling option directly on the device.
