Hager Switching/shutter output

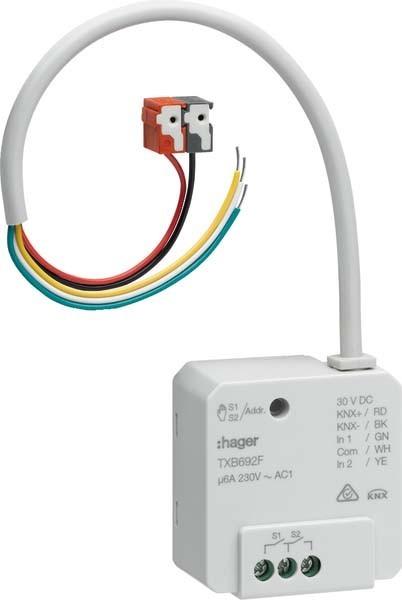

Switching Shutter Actuator 21-fold 2 Inputs KNX easy, 6A, Flush-mounted. This flush-mounted switching shutter actuator features potential-free relay contacts for controlling independent loads or for driving a motor as well as additional binary inputs for connecting conventional push-button switches. It includes an integrated bus coupler, KNX bus connection via pre-assembled cable, and load screw terminals. An LED button is provided for manual operation or as a programming button.

Functions: On/Off, timer function with switch-off pre-warning, forced control with status indication, automatic function can be deactivated, load shedding through channel shutdown, 64 scene functions. Shutter-blind function: Up-Down operation with slat angle adjustment, positioning function, and slat adjustment for blinds in percentage parameterization. Status objects for the position of the slats in percentage and for the upper and lower end positions. Forced control with status indication and alarm objects with different priority control. Automatic function can be deactivated, 64 scene functions per channel, and adjustable sun protection function.

Binary input functions: independent binary inputs, toggle, switching, timer, shutter-blind, dimming, heating, forced control, scene, deactivate automatic, load shedding, window contact, and tariff. Note: The device can be programmed using the easy commissioning tool, easy configuration server, or ETS version 4 and above. Please observe the instructions from the shutter motor manufacturers.
