Hager Surface mount Quantity

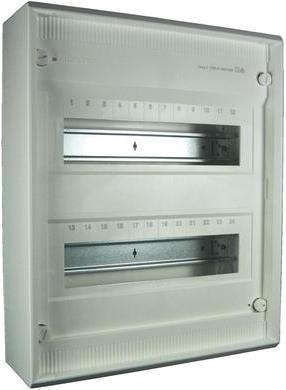

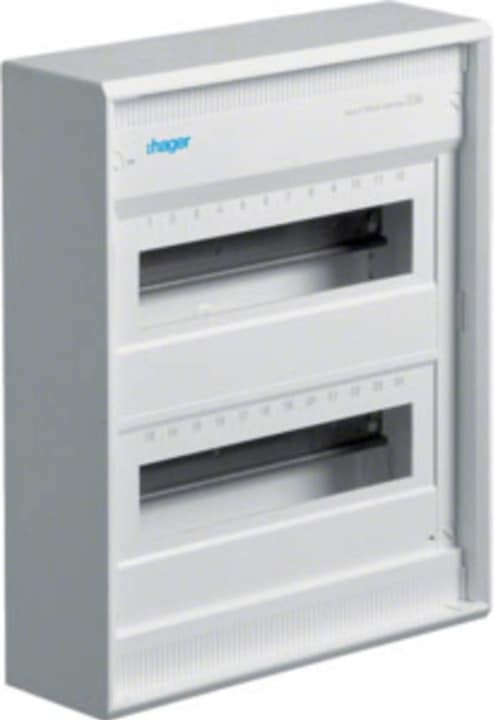

Volta surface-mounted distribution board IP30 without door, 24 module spaces, plastic installation small distribution board for surface mounting, compliant with DIN VDE 0603/1 and DIN 43871. Designed for the installation of devices up to 63 A with a maximum installation depth of 70 mm according to standard DIN 43880. Consists of a plastic base plate with standard cable entry, device holder made of galvanized steel sheet, DIN rail for the installation of modular devices according to DIN 43880. Device cover made of plastic with a 46 mm device slot, can be sealed as standard. Door (accessory) made of powder-coated and baked steel sheet. Door flush with the front and equipped with internal hand-operated hinges. Door lock with flush handle recess and self-retracting handle. Door hinge can be on the right or left. Finger-safe PE/N terminal with plug-in technology in a user-friendly snap-in design, N terminal for RCD circuits as standard.

Main features:
Technical details:
Dimensions (WxDxH): 305 x 96.5 x 370 mm
Material: Galvanized steel, plastic
Number of modules: 24
Protection class (IP code): IP30
Color: Product color white.
